Plan 63-499 Image
All images are copyrighted by designer. Do not reproduce or publish without permission.
 Plan 63-499 Features
Bedrooms & Baths:
Guest suite
Kitchen:
Island
Walk-in pantry
Eating bar
Nook / breakfast
Interior Features:
Family room
Gym / exercise room
Mud room
Formal dining room
Den / office / computer
Garage:
Oversized garage (3+)
Side-entry garage
 Plan 63-499 Detail
Bedrooms: 3
Full Baths: 3
Half Baths: 1
Levels/Stories: 1
Garage Stalls: 3
Total Sq. Ft.: 4085
Main floor: 4085
Garage: 750
Porches: 174
Width: 88' 0"
Depth: 84' 0"
Height: 30' 0"
Walls:
Ceiling Height (Main): 10'
 Short Description
Luxury abounds in this modern Italian mansion house plan with over 4000 square feet on one level. The exterior facade is stucco with trim around the windows and under the eaves. A turret-like area jets out from the right with large rectangular windows above side-by-side verticals and rectangulars on the bottom. The three-car garage with courtyard entry comes out from the left. The covered entry welcomes you under two-story arches and an arched window above the front door with two half moons that make the round glass in the middle of this front door. The two-story foyer opens into the elegant dining room with its 15’ trey ceiling and built-ins, sitting adjacent to the pantry and kitchen for ease in serving family and guest dinners. Continuing through the gallery you approach the utility room with laundry tub, washer, dryer, counter for folding clothes, two closets and a low shower for cleaning shoes, boots, or the dog. This room goes directly into the three-car garage, so having a shower head as you come inside is a definite plus. Closets make a great place to hang coats and put up gloves and boots. The garage has an area along the back large enough for a workshop area, and an exit door to enter the side yard. Next to the utility room is a family bedroom with walk-in closet and a full bathroom. Continuing toward the rear of the house plan down the gallery is the atrium, with access to the backyard and where windows allow the light to stream through. At the rear of the house plan is a large storage room and large quiet study with 12’ trey ceiling and built-ins. Through double French doors, enter the breakfast area and kitchen. The gourmet kitchen offers modern built-in appliances, granite countertops, recessed lighting, a free-standing center island, a pantry, and an eating bar that seamlessly separates the kitchen from the breakfast area. Centrally located is the large octagonal-shaped family room with 12’ trey ceiling, wet bar with ice maker and wine storage, a warming fireplace, built-in shelves, ceiling fan, arched entry from front gallery, and access to the veranda. Large floor-to-ceiling windows blur the lines between inside and out. The right side of the house plan is where you will find the luxurious master suite with access to the backyard, a sink and refrigerator, and a his and hers bath that share an exercise room. The hers bath has a luxurious marble surround Jett tub, vanity, large wardrobe with built-ins, and a private toilet room with toilet and bidet. The his bath has a private toilet room, vanity, linen closet, block glass shower, and a large wardrobe with built-ins. At the very front of the house plan inside the turret area, is a family bedroom with 14’ trey ceiling, walk-in closet with built-ins, and a bathroom. This bathroom is closed off from the gallery, and could be used as a guest suite, completing this elegant luxury Italian house plan.

Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title

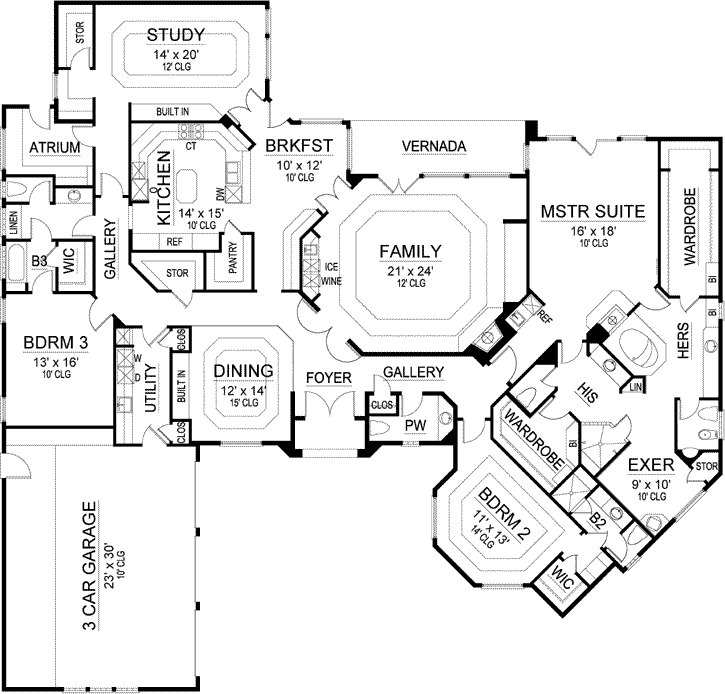

 Main Floor
Main Floor Plan: 63-499


Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


 Rear Elevations
Rear Elevations Plan:63-499


Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


 Plan Sets
  5-set   $1715
  This is the basic package that includes what most owner/builders need in paper form.


  PDF   (recommended)   $1515
  This is the package you would want to buy if you want your plans right now, want to save the shipping costs, and are willing to have your copies made locally. Changes can also be made with PDF's.


  CAD   $2275
  This is the package you would want to buy if you are planning on making substantial modifications to the drawings and want to be able to make as many copies locally as you want.



 Foundation Options
  Slab Standard With Plan
 Other Options
  Right Reading Reverse - The plan is reversed with all text reading correctly. $250
  Extra Sets - Additional sets are available only with the purchase of a construction set (8 copy, or 5 copy). $100
  Additional Build License $500

Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


Refund / Exchange Policy:

Plans printed by MonsterHousePlans.com's designers are refundable within 10 business days of purchase under the following conditions:

Plans are in their sealed, original packaging and have not been opened (to be determined by the firm that shipped the original order). Customer will pay a 20% re-stocking fee plus all shipping charges. Reproducibles, CAD Files & PDF's are not refundable under any circumstances due to copyright issues.

Plans ordered from MonsterHousePlans.com may be exchanged within 30 days of purchase under the following conditions:

Upon designer approval, customer may exchange for a plan within the same designer's collection (plan number to have same prefix). Customer will pay 20- 40% of the amount of the original order for re-stocking, plus the difference in cost if exchanging for a higher priced plan. Customer will also be responsible for all shipping charges. Reproducibles, CAD Files & PDF's are not exchangeable under any circumstances due to copyright issues.


Important Stuff

MonsterHousePlans provides home plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
1. Wind / hurricane / tornado
2. Seismic / earthquake
3. Heavy snow
4. Flood potential
5. Soil instability
Customer understands that HVAC, Plumbing & Electrical will not be included in plans (other than location of plumbing fixtures and electrical lights, plugs & switches*).

Purchaser agrees that the use of the plan is for the construction of one house only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.

*Unless otherwise noted.
