Plan 7-1049 Image
All images are copyrighted by designer. Do not reproduce or publish without permission.
 Plan 7-1049 Features
Lot Characteristics:
Suited for corner lots
Suited for a back view
Bedrooms & Baths:
Split bedrooms
Kitchen:
Island
Walk-in pantry
Eating bar
Nook / breakfast
Interior Features:
Bonus room
Great room
Open concept floor plan
Formal dining room
Unfinished/future space
Exterior Features:
Covered front porch
Covered rear porch

Garage:
Oversized garage (3+)
Side-entry garage
 Plan 7-1049 Detail
Bedrooms: 3
Full Baths: 2
Levels/Stories: 1
Garage Stalls: 3
Total Sq. Ft.: 2016
Main floor: 2016
Bonus Room: 453
Garage: 768
Porches: 840
Width: 84' 8"
Depth: 50' 0"
Height: 25' 10"
Roof Pitch (primary): 12:12
Roof Pitch (secondary): 8:12
Walls: 2"x6"
Ceiling Height (Main): 9'
 Short Description
  • Two generous-sized covered porches surround this charming country craftsman.
  • The ever-popular open-concept floor plan is alive and well here. The kitchen, great room and casual nook all join one-another with wide-open sight-lines.
  • Kitchen includes an island and walk-in pantry.
  • This is a split-bedroom design with the master and secondary bedrooms occupying opposite wings.
  • Secondary bedrooms each have walk-in closets while the private Master suite has his and hers walk-in closets.
  • A formal dining room shares open views into the Great Room as well.
  • The 3-car side-loading garage keeps front view of home looking attractive with the garage doors out of sight.
 Design Comments
Entry Barrel Vault, Master Bdrm 10' Tray

Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title

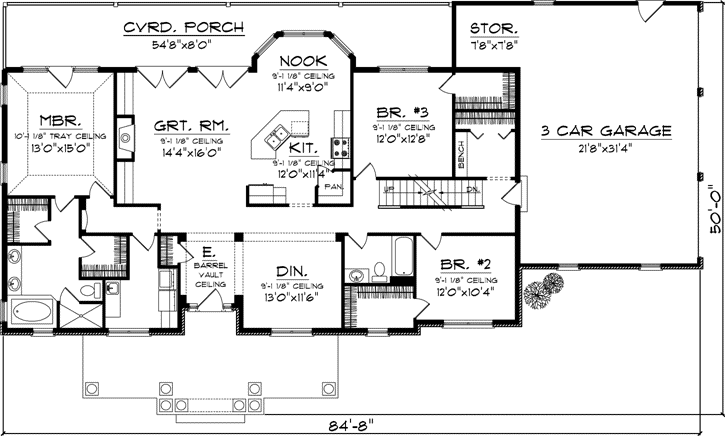

 Main Floor
Main Floor Plan: 7-1049


Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title

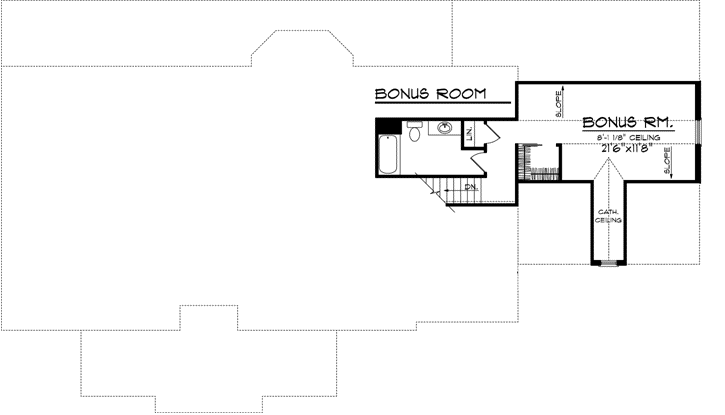

 Bonus Floor
Bonus Floor Plan:7-1049


Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


 Rear Elevations
Rear Elevations Plan:7-1049


Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


 Plan Sets
  5-set   $979
  This is the basic package that includes what most owner/builders need in paper form.


  8-set   $1025
  This is the basic package that includes what most owner/builders need in paper form.


  Reproducible   $1234
  This is the package you would want to buy if you are planning on making minor modifications to the drawings or just want to be able to make as many copies locally as you want.


  PDF   (recommended)   $1234
  This is the package you would want to buy if you want your plans right now, want to save the shipping costs, and are willing to have your copies made locally. Changes can also be made with PDF's.


  CAD   $1953
  This is the package you would want to buy if you are planning on making substantial modifications to the drawings and want to be able to make as many copies locally as you want.


  3-D Intelligent House Plan®   $400
  (Includes comprehensive Material List)


  Autodesk REVIT 2018 File®   $800
  (Includes comprehensive Material List)



 Foundation Options
  Basement Standard With Plan
  Crawlspace $ 335
  Slab $ 335
 Other Options
  Right Reading Reverse - The plan is reversed with all text reading correctly. $335
  Mirror Reverse - A Mirror Reverse is a mirrored image of the home plan, with the text appearing backwards. $40
  Extra Sets - Additional sets are available only with the purchase of a construction set (8 copy, or 5 copy). $50
  Color Artwork $150

Monster House Plans Logo
Open the door to your dream house! (800)977-5267

Call Monster House Plans to learn more about buying and
customizing house plans in our collection. 6am-6pm Pacific Time
MHP title


Refund / Exchange Policy:

Plans printed by MonsterHousePlans.com's designers are refundable within 10 business days of purchase under the following conditions:

Plans are in their sealed, original packaging and have not been opened (to be determined by the firm that shipped the original order). Customer will pay a 20% re-stocking fee plus all shipping charges. Reproducibles, CAD Files & PDF's are not refundable under any circumstances due to copyright issues.

Plans ordered from MonsterHousePlans.com may be exchanged within 30 days of purchase under the following conditions:

Upon designer approval, customer may exchange for a plan within the same designer's collection (plan number to have same prefix). Customer will pay 20- 40% of the amount of the original order for re-stocking, plus the difference in cost if exchanging for a higher priced plan. Customer will also be responsible for all shipping charges. Reproducibles, CAD Files & PDF's are not exchangeable under any circumstances due to copyright issues.


Important Stuff

MonsterHousePlans provides home plans for construction purposes but does not oversee the construction. The plan purchaser is responsible for assuring the plan meets local codes and regulations. It is the responsibility of the plan purchaser to obtain any and all structural analysis, engineering and specifications that may be required in the municipality in which it is to be built. Plan purchaser is to verify all lot conditions and measurements before construction. Purchaser is responsible for additional expenses incurred in order to meet local code and engineering requirements.
Customer understands that the following conditions in your specific area may require additional engineering:
1. Wind / hurricane / tornado
2. Seismic / earthquake
3. Heavy snow
4. Flood potential
5. Soil instability
Customer understands that HVAC, Plumbing & Electrical will not be included in plans (other than location of plumbing fixtures and electrical lights, plugs & switches*).

Purchaser agrees that the use of the plan is for the construction of one house only*, and that the plan or any part of it will not be reproduced by any means without the written consent of the copyright owner.

*Unless otherwise noted.
