4 Bedroom , 2 Bath Bungalow House Plan #30-360

Key Specs:
  • img 1628 Sq. Ft.
  • img 4 Bedrooms
  • img 2 Full Baths
  • img 2 Stories
  • img 1 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

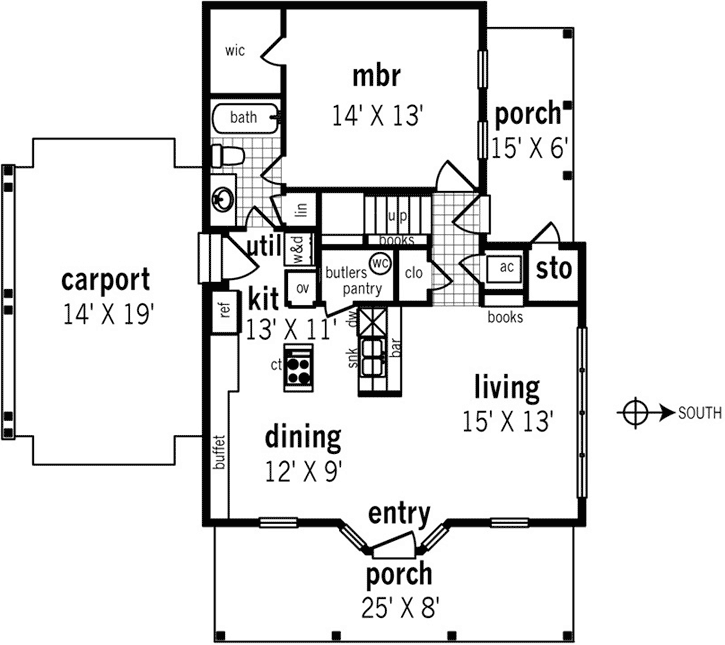

    Main Floor Plan: 30-360

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

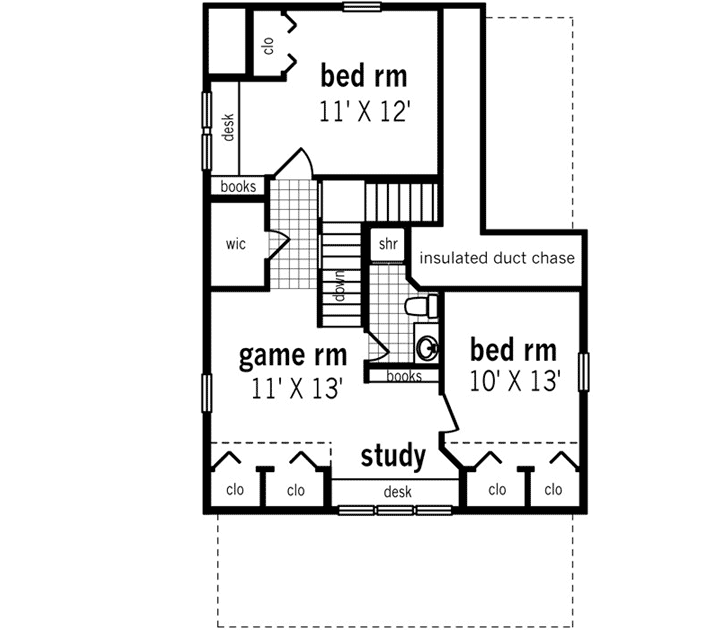

    Upper/Second Floor Plan: 30-360
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 30-360

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This delightful 3 or 4 bedroom cottage is designed to drastically cut heating and cooling cost but without adding substantial building cost. Among the many energy saving features:
1. Insulated doors and windows
2. 2x6 exterior walls with R19 insulation
3. Modified Roof Design to accommodate 12" thick R38 ceiling insulation
4. Positive vapor barrier to enhance comfort control
5. Centrally located plumbing and heating/AC for added efficiency
6. Small foot print to minimize land cost
7. Properly oriented, this home is designed to provide natural solar gain
8. New and improved framing techniques that allow previously un-insulated areas to become insulated.
9. All heat/AC ductwork is located within the heated area to maximize efficiency but all the ducts are hidden from view.
The kitchen is compactly but efficiently designed and has easy access to the washer/dryer, carport and butlers pantry. In addition, there is a buffet server, glass door china cabinet, eating bar and a built in desk. The open design of the living area disguises the fact this is a small compact home. The upper level bedrooms have maximum closet space and there are two built-in desk and books shelf units. The game room can also serve as an extra bedroom.

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area

Main floor: 870

Upper floor: 758

Porches: 278

Total Finished Sq. Ft.: 1628
Beds/Baths

Bedrooms: 4

Full Baths: 2
Garage

Garage: 270

Garage Stalls: 1
Levels

2 stories
Dimension

Width: 41' 0"

Depth: 45' 0"

Height: 24' 0"
Roof slope

12:12 (primary)

4:12 (secondary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Basement $175
  • Walk-out basement $175
  • Crawlspace Standard With Plan
  • Slab $175
