1 Bedroom , 1 Bath Bungalow House Plan #77-320

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Bungalow House Plan #77-320

Key Specs:
  • img 342 Sq. Ft.
  • img 1 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
  • img 1 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

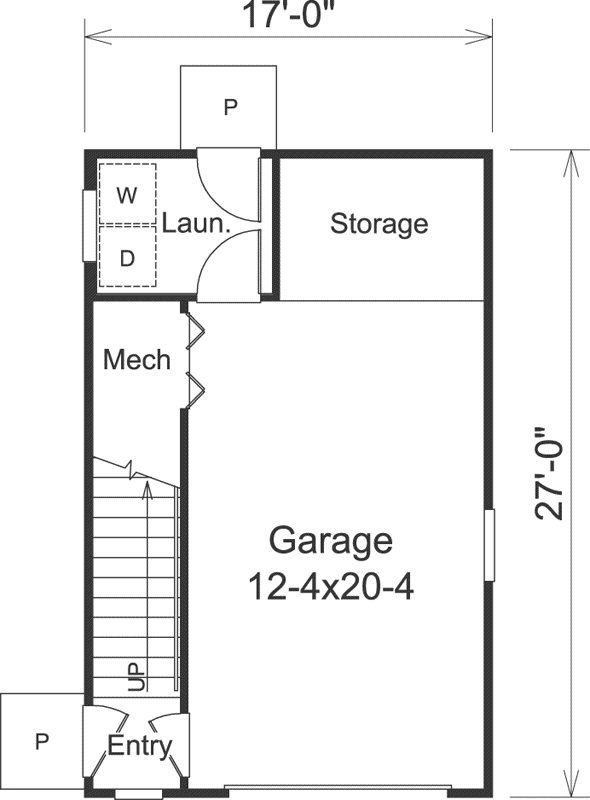

    Main Floor Plan: 77-320
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

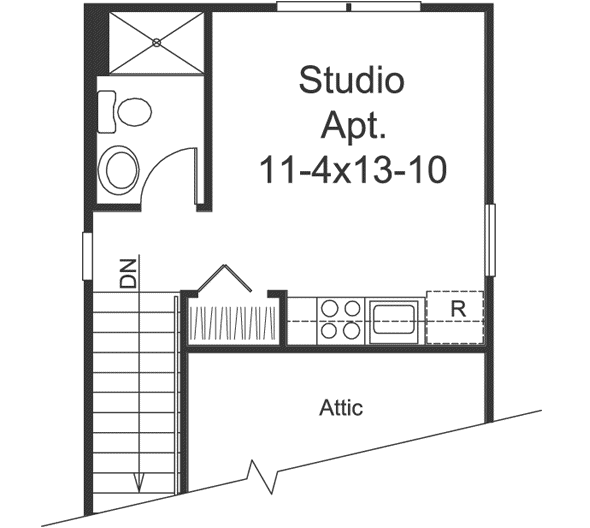

    Upper/Second Floor Plan: 77-320
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 77-320

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Garage With Studio Apartment342 total square feet of living areaSpecial featuresThis two-story building is cleverly disguised as a one-story structureA door on the side on the structure leads to an entry that has access to both the garage and the charming second floor studioThe first floor laundry room fills the responsibility of a mudroom between the garage and rear entryA kitchenette area full bath and closet are featured in the second floor studio apartment Studio room 1 bath 1-car garageSlab foundation105 square feet on the first floor and 237 square feet on the second floor

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area

Main floor: 105

Upper floor: 237

Total Finished Sq. Ft.: 342

Beds/Baths

Bedrooms: 1

Full Baths: 1

Garage

Garage: 291

Garage Stalls: 1

Levels

2 stories

Dimension

Width: 17' 0"

Depth: 27' 0"

Height: 22' 5"

Roof slope

8:12 (primary)

4:12 (secondary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan
