House Plans > Bungalow Style > Plan 77-314

1 Bedroom , 1 Bath Bungalow House Plan #77-314

SHARE ON
  • 77-314e.webp
Reverse
  • 77-314e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Bungalow House Plan #77-314

Key Specs:
  • img 713 Sq. Ft.
  • img 1 Bedrooms
  • img 1-1/2 Baths
  • img 2 Stories
  • img 3 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

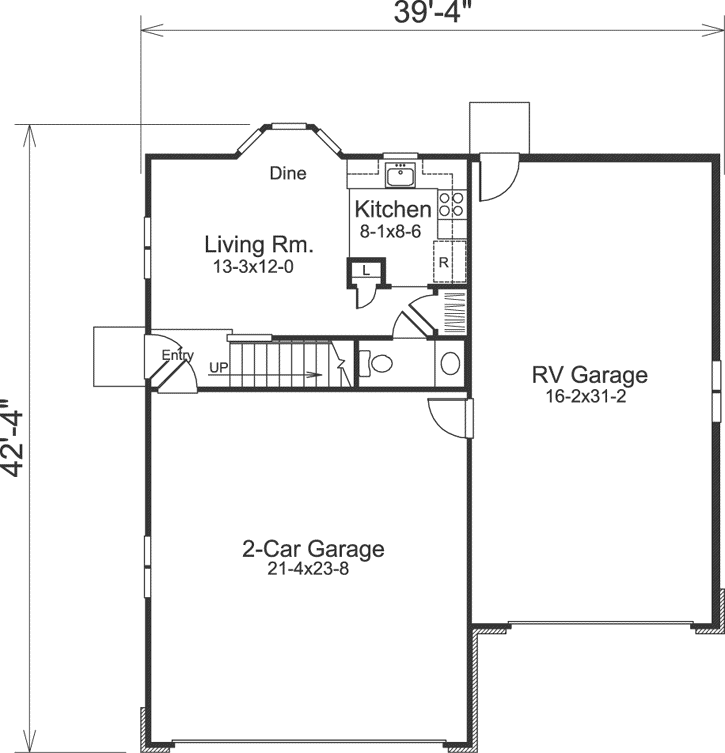

    Main Floor Plan: 77-314

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

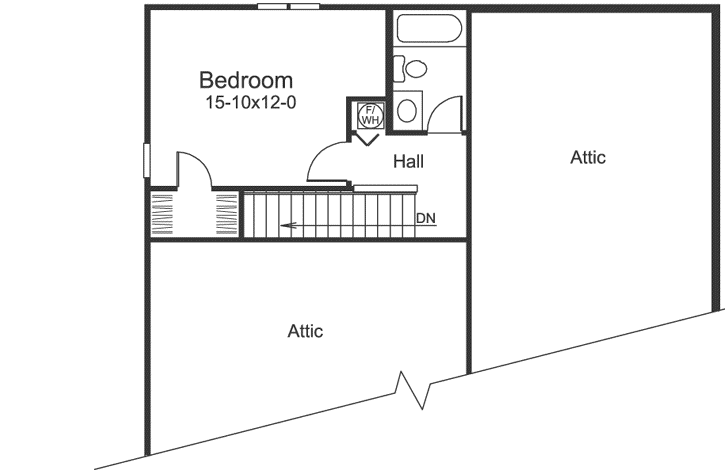

    Upper/Second Floor Plan: 77-314
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-314

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Apartment Garage Plus RV Storage713 total square feet of living areaSpecial featuresArches stonework and a roof dormer create an attractive exterior for this homeA bayed dining area separate entry with access to the garage and stairs to the second floor are some of the features of the living roomThe economical L-shaped kitchen has a built-in pantry and a lovely view to the rear yard A sizable bedroom with a desk alcove walk-in closet and a private bath off the hall are offered on the second floor1 bedroom 1 12 baths 2-car garage RV garageSlab foundation362 square feet on the first floor and 351 square feet on the second floor

This floor plan is found in our Bungalow house plans section

Full Specs and Features

Total Living Area

Main floor: 362

Upper floor: 351

Total Finished Sq. Ft.: 713
Beds/Baths

Bedrooms: 1

Full Baths: 1

Half Baths: 1
Garage

Garage: 497

Garage Stalls: 3
Levels

2 stories
Dimension

Width: 38' 8"

Depth: 40' 4"

Height: 25' 0"
Roof slope

6:12 (primary)

3:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $650

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $600

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $900

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • CAD $1050

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $1350

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $575

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Slab Standard With Plan
