3 Bedroom , 1 Bath Contemporary House Plan #35-466

SHARE ON
SHARE ON

3 Bedroom , 1 Bath Contemporary House Plan #35-466

Key Specs:
  • img 1296 Sq. Ft.
  • img 3 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

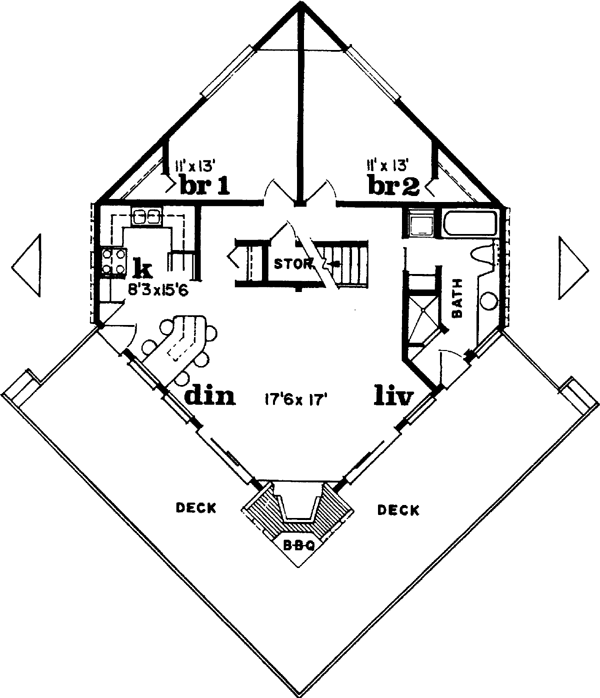

    Main Floor Plan: 35-466
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

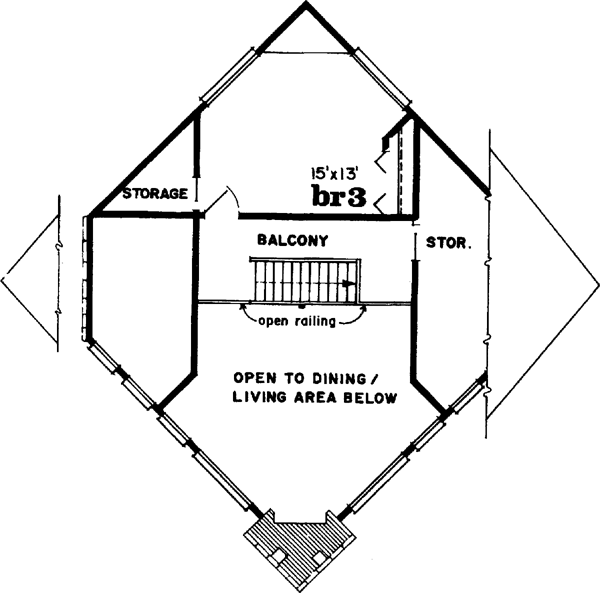

    Upper/Second Floor Plan: 35-466

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

With a striking roofline and impressive stone chimney, this cottage is the
essence of rustic design. Walls of glass fill the living/dining room and the
kitchen with sunlight. A corner hearth serves both the living and dining areas and allows for a built-in barbecue on the wide wrapping deck. The U-shaped kitchen has a built-in breakfast bar. Two bedrooms sit to the rear of the home and share the use of a full bath. A third bedroom on the second level has a balcony overlook to the living area below. Note the extra-large storage areas on the second floor.

This floor plan is found in our Contemporary house plans section

Full Specs and Features

Total Living Area

Main floor: 974

Upper floor: 322

Total Sq. Ft.: 1296

Beds/Baths

Bedrooms: 3

Full Baths: 1

Levels

2 stories

Dimension

Width: 36' 0"

Depth: 45' 3"

Height: 30' 0"

Roof slope

12:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

8' (Main)

Foundation Options

  • Crawlspace Standard With Plan
