House Plans > Cottage Style > Plan 77-164

2 Bedroom , 1 Bath Cottage House Plan #77-164

SHARE ON
  • 77-164e.webp
Reverse
  • 77-164e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

2 Bedroom , 1 Bath Cottage House Plan #77-164

Key Specs:
  • img 1530 Sq. Ft.
  • img 2 Bedrooms
  • img 1-1/2 Baths
  • img 1 Story
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

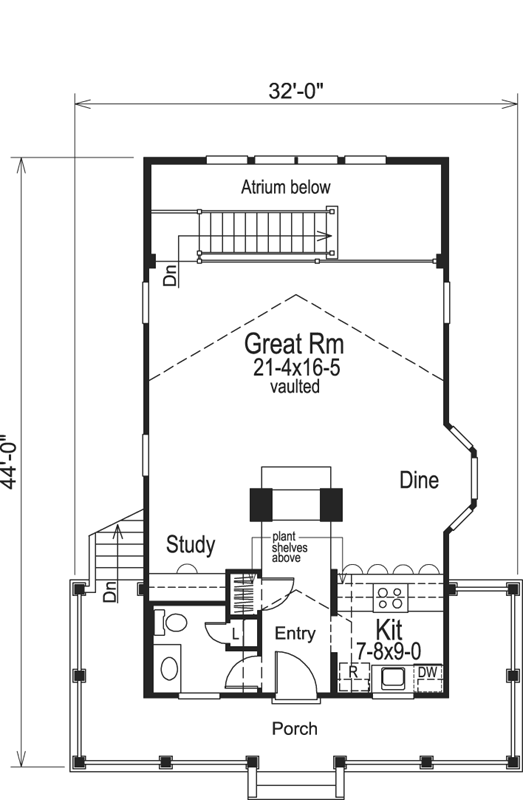

    Main Floor Plan: 77-164

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

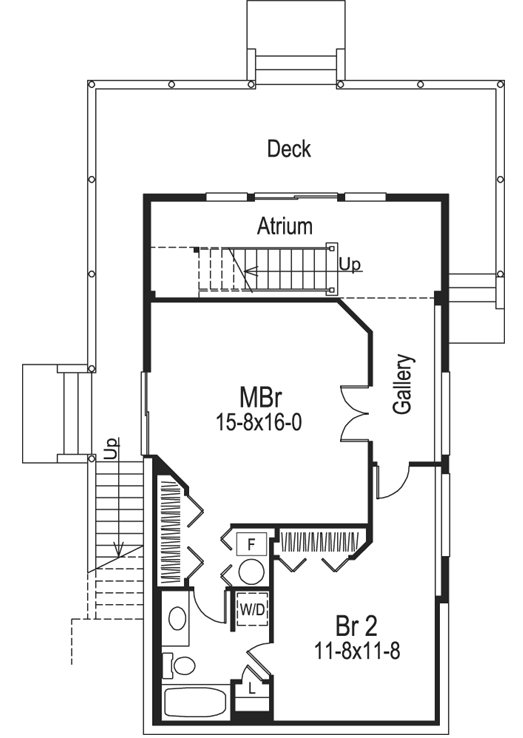

    Upper/Second Floor Plan: 77-164
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-164

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Irresistible Paradise Retreat1530 total square feet of living areaSpecial featuresThe huge vaulted great room has a magnificent view through a two-story atrium window wallThe exterior of this home highlights an enjoyable wrap-around porch and lower sundeckThe vaulted entry is adorned with a Palladian window plant shelves a stone floor and fireplace2 bedrooms 1 12 bathsWalk-out basement foundation 870 square feet on the first floor and 660 square feet on the lower level

This floor plan is found in our Cottage house plans section

Full Specs and Features

Total Living Area

Main floor: 870

Lower Floor: 660

Porches: 250

Total Finished Sq. Ft.: 1530
Beds/Baths

Bedrooms: 2

Full Baths: 1

Half Baths: 1
Levels

1 story
Dimension

Width: 32' 0"

Depth: 44' 0"

Height: 20' 8"
Roof slope

12:12 (primary)

4:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

8' (Main)

Foundation Options

  • Walk-out basement Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1049

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $1049

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1449

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Walk-out basement Standard With Plan
Monster Material List
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features

Additional Services

House Plan Features

Additional Services

Need Some Quick Tips Or Advice?

We want to help you design the house of your dreams as best as we can. If you can't find the answers you're looking for here, get in touch with our licensed architect or a designer!
