1 Bedroom , 1 Bath Craftsman House Plan #17-594

SHARE ON
  • 17-594e.webp
Reverse
  • 17-594e.webp
SHARE ON

All plans are copyrighted by the individual designer.

1 Bedroom , 1 Bath Craftsman House Plan #17-594

Key Specs:
  • img 1246 Sq. Ft.
  • img 1 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
Floor Plans

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

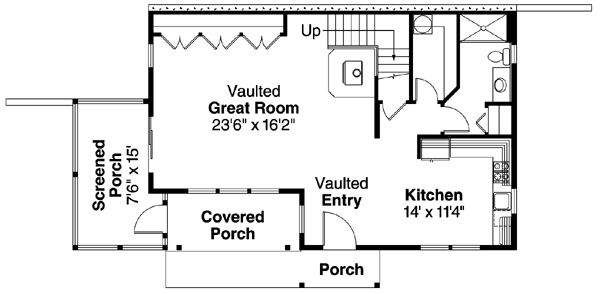

    Main Floor Plan: 17-594

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

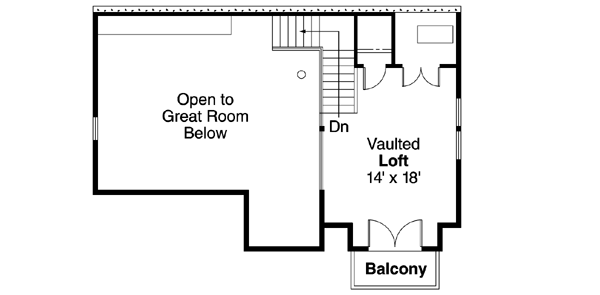

    Upper/Second Floor Plan: 17-594
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 17-594

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This cozy vacation cottage would be at home on a lake ocean beach or tucked into a mountain grove.Slender wooden posts support a gabled entry porch while perennially charming craftsman-style windows sparkle across the front. Cedar shingles fill the two front-facing gable ends both of which are accented by decorative supports that you would see in a Cape Cod style home plan.Abundant natural light spills into the vaulted entry and living room through a transom and clerestory windows. This room has a surprisingly spacious feel. The ceiling line rises up from the front peaks then slopes down at the rear. Even the lowest parts of the ceiling are several feet higher than average.Natural heat emanates from a clean-burning low maintenance pellet stove that nestles into a brick lined alcove by the stairs. The built-in cabinet that fills most of the rear wall has a display area on top. This could serve as shelving for books and games while housing a home entertainment center as well.Sliders on the left access a screened porch ideal for bug-free outdoor meals.The kitchenette is directly to the right of the entry. Its ceiling is lower but otherwise this space is totally open to the great room. Cupboards counters and appliances rim two walls. Twin windows fill half of the third creating a delightful view from the kitchen table.A combination bathroomutility room and a storage room fill out the rest of this design's main floor. Washer and dryer are stacked to maximize space usage. Additional storage is also available under the stairs. Double doors in the vaulted loft upstairs open onto a front-facing balcony with a wooden handrail.

This floor plan is found in our Craftsman house plans section

Full Specs and Features

Total Living Area

Main floor: 918

Upper floor: 328

Total Sq. Ft.: 1246
Beds/Baths

Bedrooms: 1

Full Baths: 1
Levels

2 stories
Dimension

Width: 47' 0"

Depth: 30' 0"

Height: 24' 0"
Roof slope

10:12 (primary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)

Foundation Options

  • Basement $325
  • Crawlspace Standard With Plan
  • Slab $290

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • PDF (recommended) $1825

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF Light $930

    This is the package you would want to buy if you are not making modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • PDF Light + 5 $1140

    This is the package you would want to buy if you are not making modifications to the drawings. This is a PDF file that is emailed to you plus 5 complete sets that are shipped to you.

  • CAD $2030

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $2230

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $670

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement $325
  • Crawlspace Standard With Plan
  • Slab $290
