House Plans > European Style > Plan 8-423
All plans are copyrighted by the individual designer.
Photographs may reflect custom changes that were not included in the original design.
Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

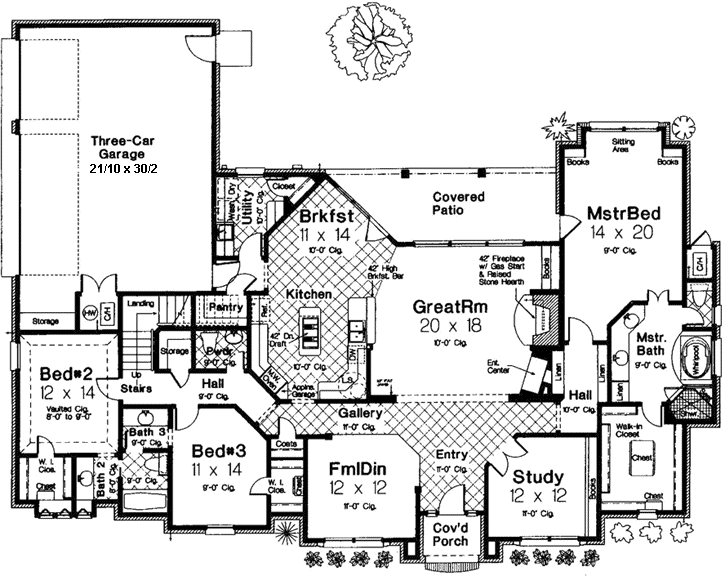

Bathroom 2: 30 sq/ft width 5' x depth 6'
Bedroom 2: 168 sq/ft width 12' x depth 14'
Bedroom 3: 154 sq/ft width 11' x depth 14'

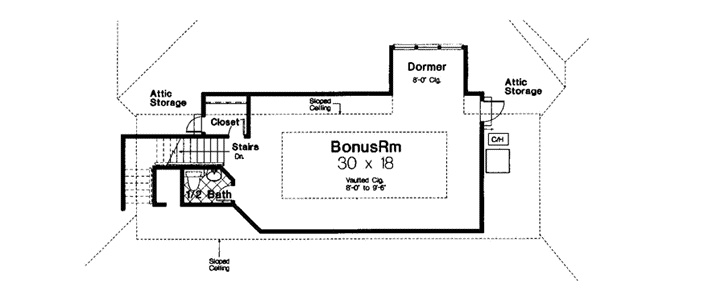

Bonus Room - Finished: 540 sq/ft width 30' x depth 18'
Breakfast Room: 154 sq/ft width 11' x depth 14'
Dining Room: 144 sq/ft width 12' x depth 12'
Foyer: width 7' 6" x depth 0"
Gallery: width 4' x depth 0"
Garage: 660 sq/ft width 22' x depth 30'
Grand Room: 360 sq/ft width 20' x depth 18'
Kitchen: 146 sq/ft width 13' x depth 11' 3"
Master Bathroom: 138 sq/ft width 12' x depth 11' 6"
Master Bedroom: 280 sq/ft width 14' x depth 20'
Master Closet: 90 sq/ft width 9' x depth 10'
Master Sitting Room: 27 sq/ft width 3' x depth 9'
Pantry: 24 sq/ft width 4' x depth 6'
Porch - Front: 40 sq/ft width 8' x depth 5'
Porch - Rear: 176 sq/ft
Powder Room: 25 sq/ft width 5' x depth 5'
Storage: 16 sq/ft width 4' x depth 4'
Study: 144 sq/ft width 12' x depth 12'
Utility Room: 70 sq/ft width 10' x depth 7'
Walk-In Closet: 24 sq/ft width 4' x depth 6'
This floor plan is found in our European house plans section
Total Living Area |
Main floor: 2720 Bonus: 647 |
Porches: 216 Total Finished Sq. Ft.: 2720 |
---|---|---|
Beds/Baths |
Bedrooms: 3 Full Baths: 2 |
Half Baths: 1 |
Garage |
Garage: 715 Garage Stalls: 3 |
|
Levels |
1 story |
|
Dimension |
Width: 80' 0" Depth: 61' 10" |
Height: 29' 0" |
Roof slope |
10:12 (primary) |
|
Walls (exterior) |
2"x4" |
|
Ceiling heights |
9' (Main) |
“The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”
...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.
...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.
...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
