House Plans > Mediterranean Style > Plan 77-367

1 Bedroom , 1 Bath Mediterranean House Plan #77-367

SHARE ON
  • 77-367e.webp
Reverse
  • 77-367e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Mediterranean House Plan #77-367

Key Specs:
  • img 1091 Sq. Ft.
  • img 1 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

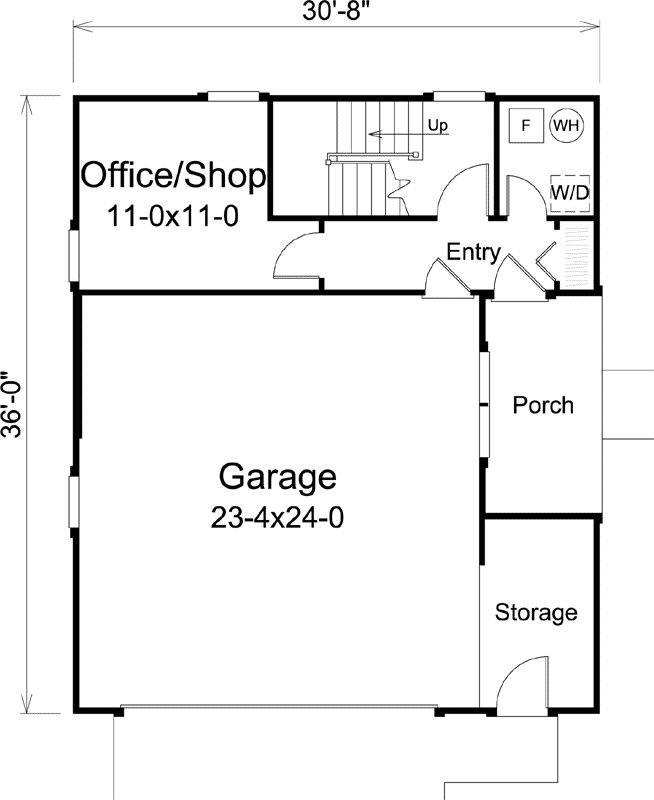

    Main Floor Plan: 77-367

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

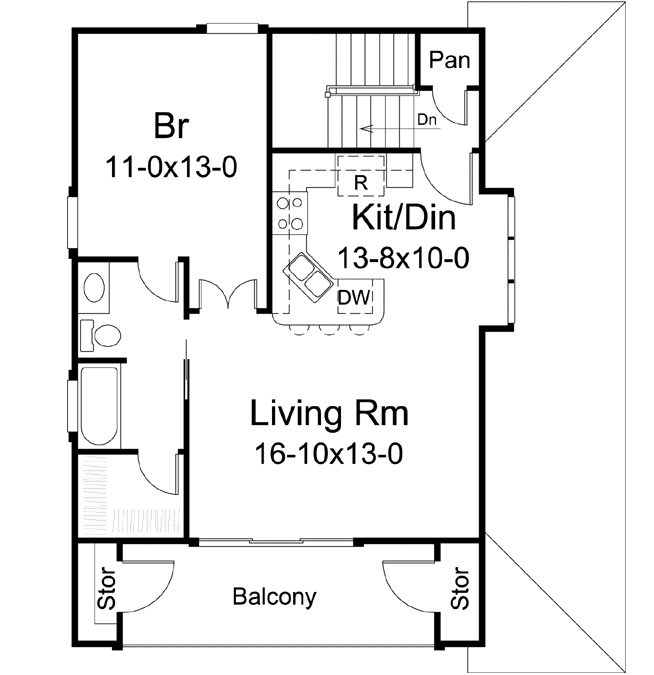

    Upper/Second Floor Plan: 77-367
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-367

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Apartment Garage Enjoys Outdoor Balcony1091 total square feet of living areaSpecial featuresAn extra wide 18' door and large entry with storage area are features of this oversized garage The entry hall can be accesses from the large side covered porch and features a handy coat closet room for an office or shop a mechanical room and stairs to the living area above The second floor living room has accesses to the covered outdoor balcony and is open to the U-shaped kitchen with dining bay built-in pantry and snack counter Double entry doors open to the bedroom with roomy compartmented bath and a walk-in closet1 bedroom 1 bath 2-car garageSlab foundation357 square feet on the first floor and 734 square feet on the second floor

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 357

Upper floor: 734

Porches: 82

Total Finished Sq. Ft.: 1091
Beds/Baths

Bedrooms: 1

Full Baths: 1
Garage

Garage: 654

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 30' 8"

Depth: 36' 0"

Height: 25' 6"
Roof slope

6:12 (primary)
Walls (exterior)

2"x4"
Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $750

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $700

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1000

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • CAD $1150

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - CAD $1450

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $650

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Slab Standard With Plan
