3 Bedroom , 2 Bath Mediterranean House Plan #4-163

Key Specs:
  • img 2020 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img 1 Story
  • img 2 Garages

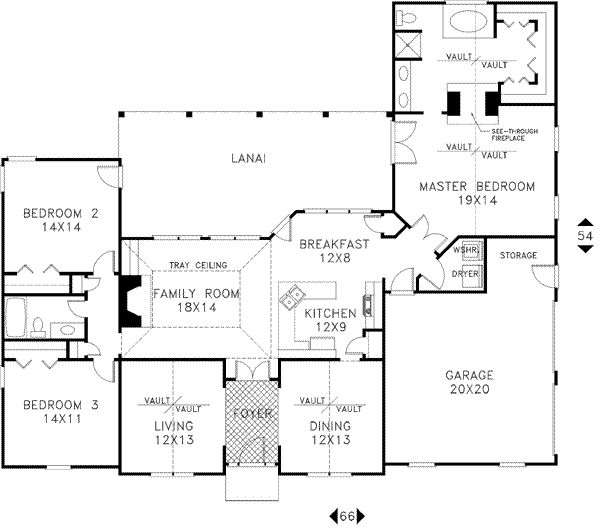

Floor Plans

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This attractive 2,020 sq.ft. Mediterranean ranch design, with 3 bedrooms and 2 baths, is loaded with luxurious features. Vaulted ceilings are featured in the formal living and dining areas as well as the master bedroom. The 18'x14' family room has a fireplace, an entertainment center, and a trey ceiling. A see-through fireplace is one of the highlights of the master bedroom which has access to a large lanai. (The lanai is also accessible from bedroom #2.) Featuring a vaulted ceiling, the master bath has both a garden tub and a shower. Closet space abounds in the spacious triple closet. The two remaining bedrooms are isolated from the master suite and share a hall bath. Numerous windows throughout the breakfast and family rooms make these rooms bright and airy.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 2020

Total Sq. Ft.: 2020
Beds/Baths

Bedrooms: 3

Full Baths: 2
Garage

Garage Stalls: 2
Levels

1 story
Dimension

Width: 66' 0"

Depth: 54' 0"

Height: 20' 0"
Roof slope

6:12 (primary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)

Foundation Options

  • Basement $250
  • Crawlspace $250
  • Slab Standard With Plan
  • 5-set $1245

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1295

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • Reproducible $1345

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. It is sent to you by mail.

  • PDF (recommended) $1195

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build Construction - PDF $1795

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • CAD $1695

    This is the package you would to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build Construction - CAD $2295

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license
