3 Bedroom , 2 Bath Mediterranean House Plan #17-260

SHARE ON
SHARE ON

3 Bedroom , 2 Bath Mediterranean House Plan #17-260

Key Specs:
  • img 2092 Sq. Ft.
  • img 3 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

A tile roof, arched windows and corner quoins create visual appeal for this Mediterranean home plan. Screened porch spans rear; most main floor ceilings are vaulted. Sunny nook expands kitchen; close to utilities and powder room. This design fits easily on a small lot and is economical to build. In a home with such a compact exterior, you might well expect a somewhat cramped interior, but that simply isn't the case with this design.

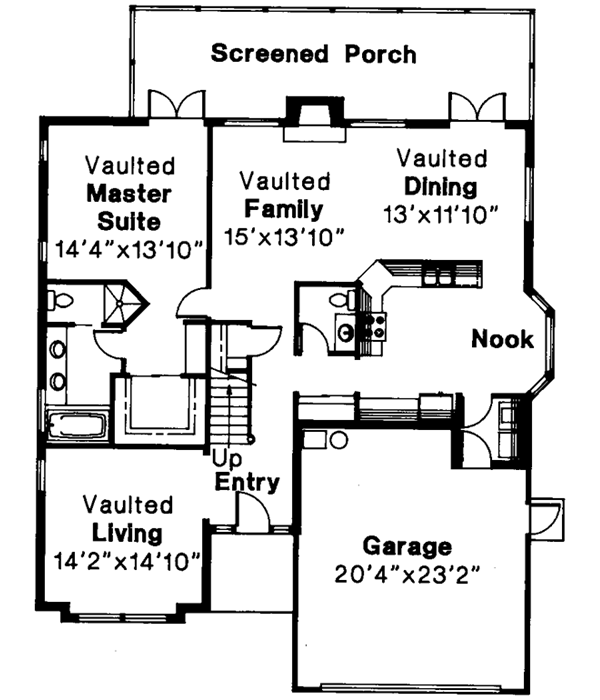

Vaulted ceilings in the entry, living room, dining room, family room, and master bedroom make the informal home seem even more spacious. The living room is further expanded by a boxed out window bay.

While the large country kitchen is adjacent to the combination dining/family room, it isn't completely open. This arrangement keeps kitchen messes out of sight until there is time to deal with them. Other features include a sunny eating nook, a small pantry, and a pass through counter to the family room.

A small powder room is conveniently close to the kitchen, family room and entry. The utility room is also handy, tucked into a passageway between the two car garage and the kitchen.

Amenities in the master suite include a huge walk in closet, spa tub and a separate shower. French doors from the bedroom open onto a wide screened porch.

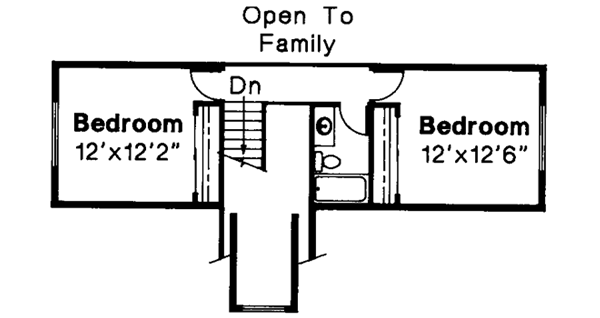

Two good size bedrooms and a bathroom nestle under the gable that runs the width of the home. A railed bridge at the top of the stairs overlooks the family room, to the rear, and the entry hall to the front.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 1593

Upper floor: 499

Bonus: 360

Total Sq. Ft.: 2092

Beds/Baths

Bedrooms: 3

Full Baths: 2

Half Baths: 1

Garage

Garage: 464

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 46' 0"

Depth: 61' 0"

Height: 23' 10"

Roof slope

6:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

8' (Main)

Foundation Options

  • Basement $325
  • Crawlspace $250
  • Slab Standard With Plan
