3 Bedroom , 2 Bath Mediterranean House Plan #17-529

SHARE ON
SHARE ON

3 Bedroom , 2 Bath Mediterranean House Plan #17-529

Key Specs:
  • img 2261 Sq. Ft.
  • img 3 Bedrooms
  • img 2-1/2 Baths
  • img 1 Story
  • img 2 Garages

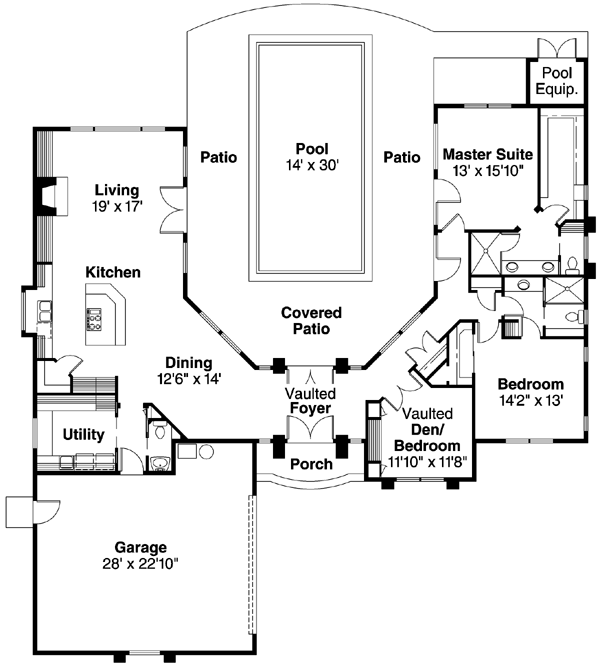

Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This design is a totally contemporary single-level plan with two distinct wings that wrap around a central courtyard with a large pool at center. Parents and guests can keep a watchful eye on that pool, whether they're in the master suite, foyer, dining room, kitchen or living room.

Stucco columns and raised stucco trim accent the gently arched openings of the lofty entry and two front windows, each filled with a sparkling expanse of glass. Inside the majestic vaulted foyer, an abundance of natural light spills down through two arched transoms (front and rear). More washes in through double atrium doors that provide a view of, as well as access to, the pool.

Family gathering spaces and a utility room are to the left; sleeping quarters are to the right. The room closest to the entry could be used as a home office, den, library, or whatever is needed.

Dining room, kitchen and living room flow together, in a large room where ceiling variations help define the spaces. Kitchen features include built-in appliances, a walk-in pantry, garden window, and a large work island rimmed by a raised eating bar.

Laundry appliances and a powder room are just around the corner, off a hallway that links the kitchen to a two-car garage. The utility room is larger than most. A built-in desk on one side could house the family computer or a sewing machine, and the long counter next to the broom closet is perfect for folding clothes.

The master suite boasts an exceptionally deep walk-in closet, plus a skylit bathroom with a shower, double vanity, and separately enclosed toilet. Secondary bedrooms share yet another bathroom.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 2261

Total Sq. Ft.: 2261

Beds/Baths

Bedrooms: 3

Full Baths: 2

Half Baths: 1

Garage

Garage: 720

Garage Stalls: 2

Levels

1 story

Dimension

Width: 74' 6"

Depth: 78' 6"

Height: 19' 4"

Roof slope

6:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)

Foundation Options

  • Basement $325
  • Crawlspace Standard With Plan
  • Slab $250
