3 Bedroom , 2 Bath Mediterranean House Plan #7-811

SHARE ON
SHARE ON

3 Bedroom , 2 Bath Mediterranean House Plan #7-811

Key Specs:
  • img 2578 Sq. Ft.
  • img 3 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 3 Garages

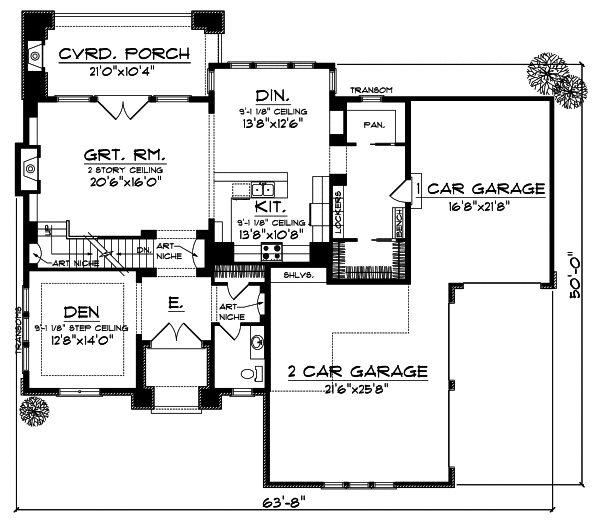

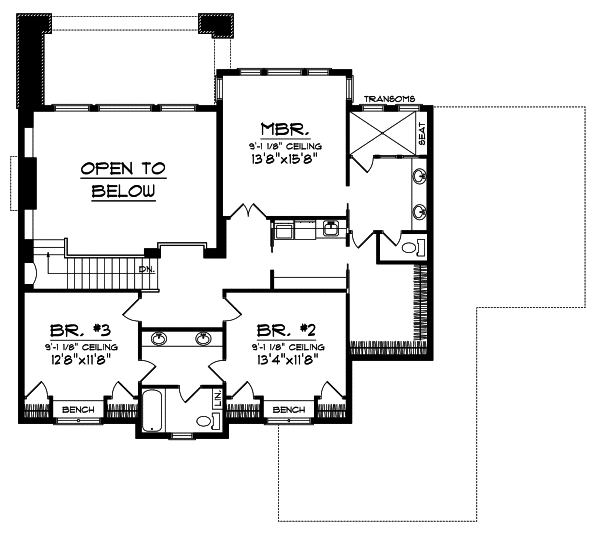

Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

It?s the small details such as window boxes and shutters that gives this Mediterranean-inspired design its charm. A formal den with step ceiling is located to your left as you enter, and a powder room to your right. Directly ahead, you'll find a spacious great room graced by a fireplace and built-ins and a wall of French doors that leads to an expansive covered porch. The kitchen overlooks the dining room and features an eat-in island. The master suite is located upstairs along with two additional bedrooms and Jack and Jill bath. Other amenities include art niches, a large laundry with lockers and an outside fireplace in the covered porch area. A three-stall, split garage features two side-load stalls, one front load stall and lots of storage space.

Important Note: This home may NOT be built within a 100 mile radius of Des Moines, Iowa.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 1381

Upper floor: 1197

Total Sq. Ft.: 2578

Beds/Baths

Bedrooms: 3

Full Baths: 2

Half Baths: 1

Garage

Garage: 913

Garage Stalls: 3

Levels

2 stories

Dimension

Width: 63' 8"

Depth: 50' 0"

Height: 26' 1"

Roof slope

6:12 (primary)

4:12 (secondary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)
9' (Upper)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $335
  • Slab $335
Exclusive Options
Optional Add-Ons

Subtotal: $0

      3-D modeling

      Taking house plans to a new level!!!

      “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

      Intelligent Sample

      iconDownload

      The Intelligent Advantage....

      ...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

      • VIEW 3-D Models from multiple vantage points.
      • ASSURANCE that the design through and through is of the highest standard.
      • ABILITY to review constructability (especially important complex roof designs and wall geometries).
      • Obtain ACCURATE material take-off reports.
      • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
      • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

      Building Information Modeling (BIM)

      ...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

      What you get...

      • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
      • Interior Perspective view (You select casing, baseboard, crown molding styles)
      • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
      • Enhanced Framing Plans (See sample pdf)
      • Complete material schedules & takeoffs
      • (1) 3-D Intelligent Structural View (Additional views upon request)

      How to order...

      ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
