4 Bedroom, 4 Bath Mediterranean House Plan #30-297
- Sq. Ft. 3284
- Bedrooms 4
- Full Baths 4
- Stories 2 Stories
- Garages 2
- See All Plan Specs
Floor Plans
What's included?-

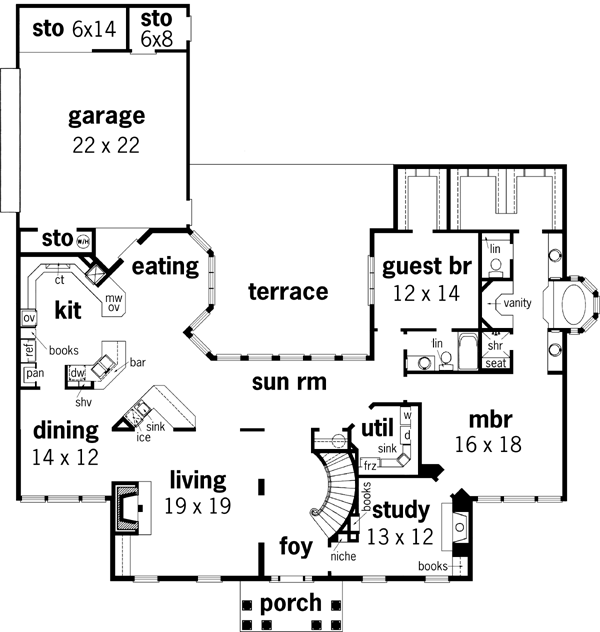

Main Floor
ReverseClicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
![Main Floor Plan: 30-297]()
-

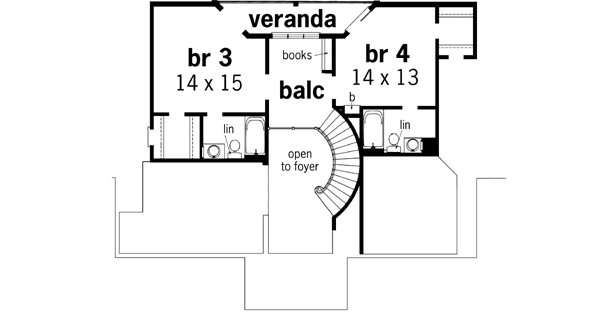

Upper/Second Floor
ReverseClicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
![Upper/Second Floor Plan: 30-297]()
House Plan Highlights
Designed after a historic home in Natchez, the exterior stucco facade is true to the original design and it has many of the same details such as the widow walk railing and the twin chimneys. Step into the open ceiling foyer and you will see a curved stairwell ascending to the second level balcony which also serves as a library. Each of the upper level bedrooms have a large walk-in closet, private baths and french door access to the rear upper level veranda. The main level master bath has direct access to the adjoining study. The study has a decidedly masculine tone which includes 14' ceilings, a fireplace, built-in bookshelves and access from the foyer. For the lady, a u-shaped, mirrored and well-lit dressing area in the master bath provides a great spot for applying makeup. The eating area and sunroom have full-length window walls overlooking the terrace. The v-shaped wet bar, complete with sink and icemaker, is positioned to serve terrace, sun room or living room .This floor plan is found in our Mediterranean house plans section
Full Specs and Features
Total Living Area
- Main floor: 2655
- Upper floor: 629
- Porches: 150
- Total Finished Sq. Ft.: 3284
Beds/Baths
- Bedrooms: 4
- Full Baths: 4
Garage
- Garage: 504
- Garage Stalls: 2
Levels
- 2 stories
Dimension
- Width: 74' 0"
- Depth: 78' 0"
- Height: 28' 0"
Roof slope
- 8:12 (primary)
Walls (exterior)
- 2"x6"
Ceiling heights
- 9' (Main)
8' (Upper)
Foundation Options
- Basement $175
- Crawlspace $175
- Slab Standard With Plan
How Much Will It Cost To Build?
"Need content here about cost to build est."
Buy My Cost To Build EstimateModify This Plan
"Need Content here about modifying your plan"
Customize This PlanHouse Plan Features
Suited for corner lots Suited for a back view
Main floor Master Guest suite Teen suite/Jack & Jill bath
Eating bar Nook / breakfast
Family room Main Floor laundry Loft / balcony Open concept floor plan No formal living/dining Den / office / computer
Screened porch/sunroom
Circular / dual staircases Vaulted/Volume/Dramatic ceilings
Rear garage Side-entry garage
