3 Bedroom, 4 Bath Mediterranean House Plan #63-101
- Sq. Ft. 4356
- Bedrooms 3
- Bathrooms 4-1/2
- Stories 2 Stories
- Garages 3
- See All Plan Specs
Floor Plans
What's included?-

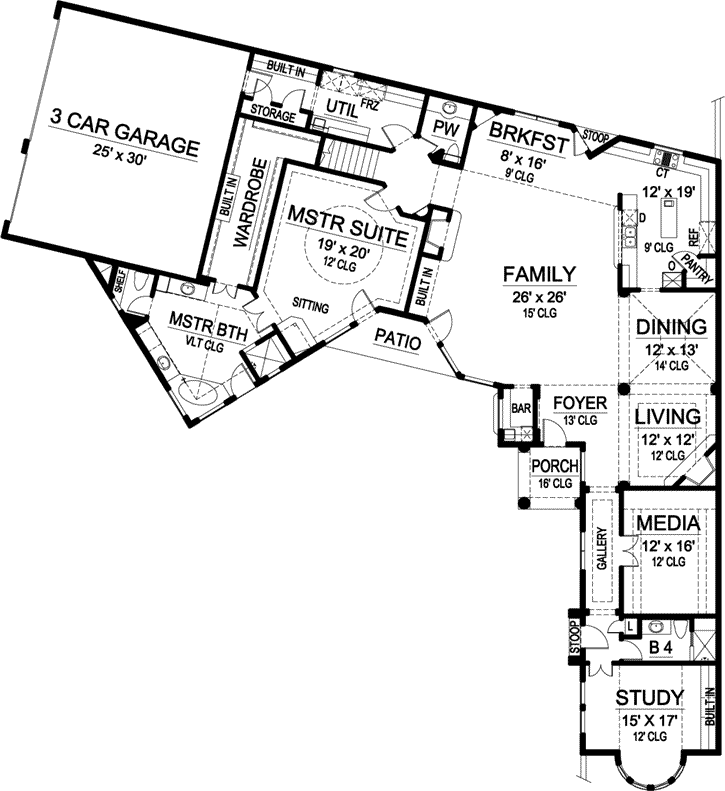

Main Floor
ReverseClicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
![Main Floor Plan: 63-101]()
-

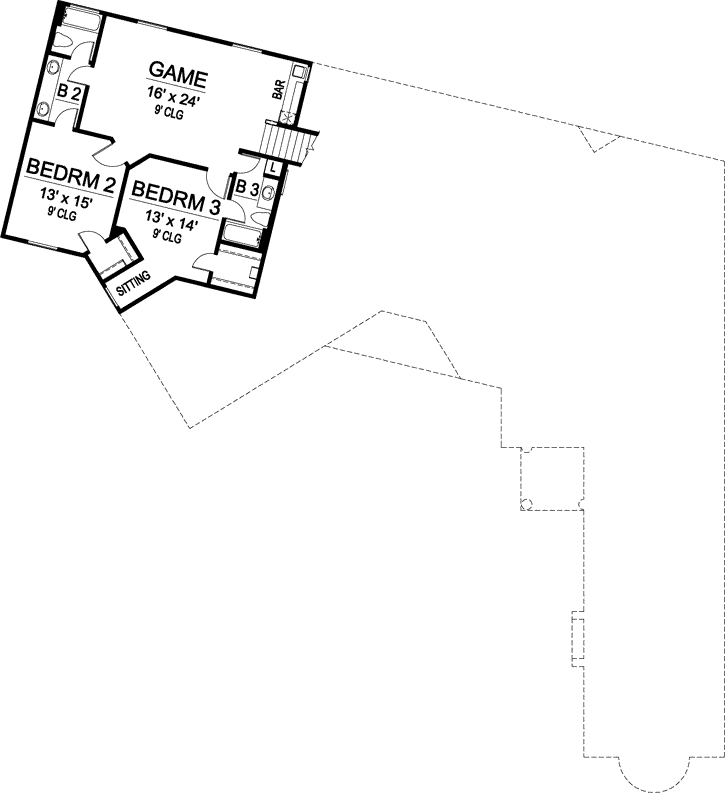

Upper/Second Floor
ReverseClicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
![Upper/Second Floor Plan: 63-101]()
Rear/Alternate Elevations
-
Rear Elevation
ReverseClicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.
![Rear Elevation Plan: 63-101]()
House Plan Highlights
Beautiful and Spacious, the artful disposition of this Luxurious Villa owns a distinctly Mediterreanean flavor. Dramatic and Inspiring, the entry is set off by an arch frame that opens to an expansive interior. The Family Room provides a fireplace and opens to all it's bordering Rooms. The Master Wing is a sumptuous retreat with double doors that open to the lavish Master Bath. The spacious Game Room and two secondary Bedrroms are located upstairs.This floor plan is found in our Mediterranean house plans section
Full Specs and Features
Total Living Area
- Main floor: 3317
- Upper floor: 1039
- Porches: 64
- Total Finished Sq. Ft.: 4356
Beds/Baths
- Bedrooms: 3
- Full Baths: 4
- Half Baths: 1
Garage
- Garage: 784
- Garage Stalls: 3
Levels
- 2 stories
Dimension
- Width: 91' 10"
- Depth: 100' 9"
- Height: 34' 4"
Roof slope
- 12:12 (primary)
Walls (exterior)
- 2"x6"
Ceiling heights
- 10' (Main)
9' (Upper)
Foundation Options
- Slab Standard With Plan
How Much Will It Cost To Build?
"Need content here about cost to build est."
Buy My Cost To Build EstimateModify This Plan
"Need Content here about modifying your plan"
Customize This PlanHouse Plan Features
Suited for corner lots Zero lot-line
Main floor Master Master sitting area/Nursery Teen suite/Jack & Jill bath
Island Walk-in pantry Nook / breakfast
Family room Hobby / rec-room Main Floor laundry Media room Open concept floor plan Formal dining room Formal living room Den / office / computer
Vaulted/Volume/Dramatic ceilings Photos Available
Oversized garage (3+) Side-entry garage
