5 Bedroom , 3 Bath Mediterranean House Plan #7-506

SHARE ON
SHARE ON

5 Bedroom , 3 Bath Mediterranean House Plan #7-506

Key Specs:
  • img 5282 Sq. Ft.
  • img 5 Bedrooms
  • img 3-1/2 Baths
  • img 1 Story
  • img 3 Garages
Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

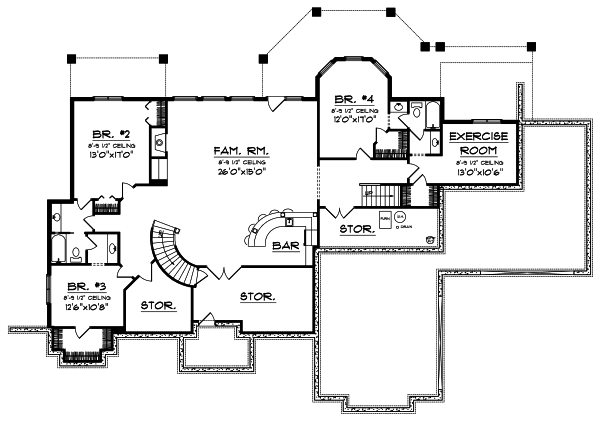

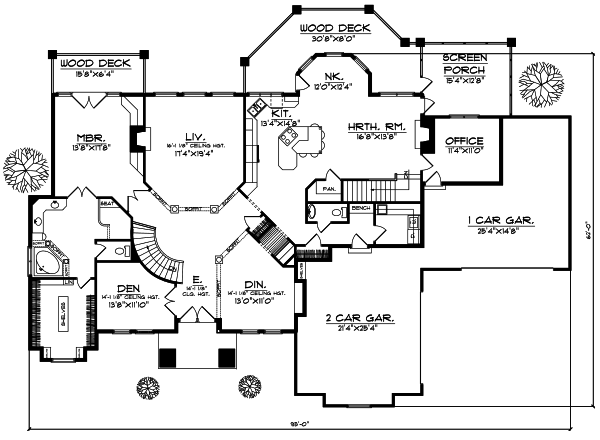

Mediterranean elegance shapes the facade of this tempting design. A formal dining room and den flank the entry inside and an elegant curved-stairway leads to the lower level. The snack-bar kitchen, breakfast nook bay and hearth rooms are open to one another for casual family gatherings, while the wrap-around deck outside makes it a fantastic area for viewing the back yard. The main-level master suite boasts a private wood deck, master bath and roomy walk-in closet. The basement level offers four additional bedrooms, three bathrooms, a family room, a toy room and exercise room.

Important Note: This home may NOT be built within a 100 mile radius of Cedar Rapids, Iowa.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

Main floor: 2812

Lower Floor: 2470

Total Sq. Ft.: 5282

Beds/Baths

Bedrooms: 5

Full Baths: 3

Half Baths: 1

Garage

Garage: 1136

Garage Stalls: 3

Levels

1 story

Dimension

Width: 95' 0"

Depth: 62' 0"

Height: 25' 4"

Roof slope

6:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

10' (Main)

Foundation Options

  • Daylight basement Standard With Plan
  • Crawlspace $335
  • Slab $335
What's included?
Exclusive Options
Optional Add-Ons

Subtotal: $0

      3-D modeling

      Taking house plans to a new level!!!

      “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

      Intelligent Sample

      iconDownload

      The Intelligent Advantage....

      ...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

      • VIEW 3-D Models from multiple vantage points.
      • ASSURANCE that the design through and through is of the highest standard.
      • ABILITY to review constructability (especially important complex roof designs and wall geometries).
      • Obtain ACCURATE material take-off reports.
      • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
      • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

      Building Information Modeling (BIM)

      ...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

      What you get...

      • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
      • Interior Perspective view (You select casing, baseboard, crown molding styles)
      • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
      • Enhanced Framing Plans (See sample pdf)
      • Complete material schedules & takeoffs
      • (1) 3-D Intelligent Structural View (Additional views upon request)

      How to order...

      ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
