3 Bedroom , 2 Bath Mountain Or Rustic House Plan #12-840

SHARE ON
SHARE ON

3 Bedroom , 2 Bath Mountain Or Rustic House Plan #12-840

Key Specs:
  • img 1874 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img 1 Story
  • img 2 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

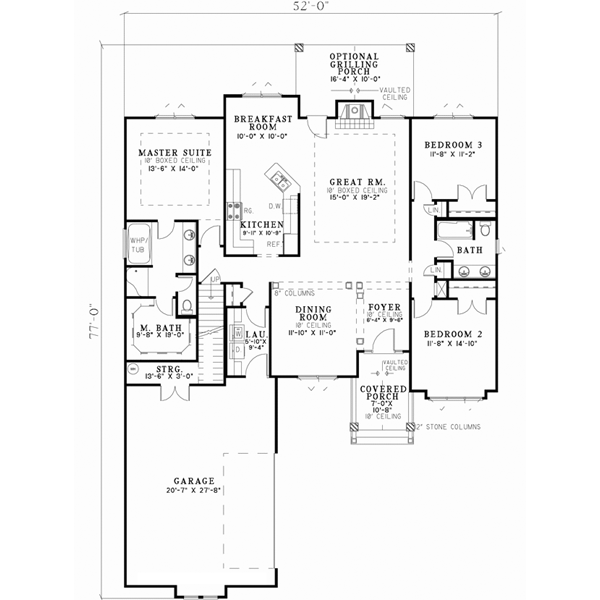

    Main Floor Plan: 12-840
  • Bonus Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

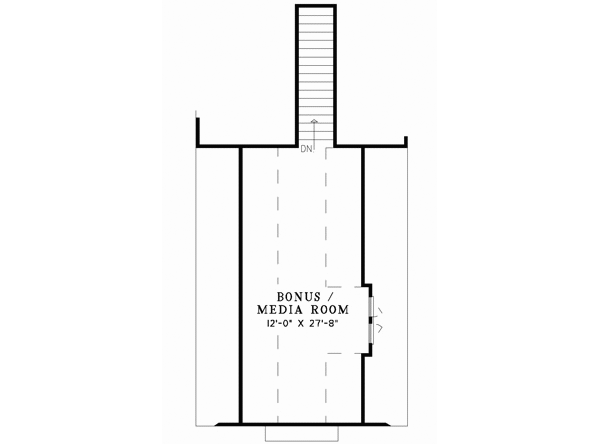

    Bonus Floor Plan: 12-840
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 12-840

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

The craftsman style era of special detail in architectural elements complements this perfect floor plan! An exterior of rustic siding and carriage style garage doors are accented by stone features and shed roofs. This split three bedroom plan has large bedrooms and an upper-level media room accommodating just about any family. Stylish ten-foot boxed ceilings are used throughout giving a grand effect while the quaint rear grilling porch sports a vaulted ceiling. Plenty of storage can be found in this smart design and if needed the upper bonus room can serve as off season storage or better yet, the much adored home theater.

This floor plan is found in our Mountain or Rustic house plans section

Full Specs and Features

Total Living Area

Main floor: 1874

Bonus: 289

Porches: 234

Total Sq. Ft.: 1874

Beds/Baths

Bedrooms: 3

Full Baths: 2

Garage

Garage: 572

Garage Stalls: 2

Levels

1 story

Dimension

Width: 52' 0"

Depth: 77' 0"

Height: 24' 10"

Roof slope

10:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Basement $299
  • Daylight basement $299
  • Crawlspace Standard With Plan
  • Slab Standard With Plan
What's included?
Exclusive Options
Optional Add-Ons

Subtotal: $0

    3-D modeling

    Taking house plans to a new level!!!

    “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

    Intelligent Sample

    iconDownload

    The Intelligent Advantage....

    ...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

    • VIEW 3-D Models from multiple vantage points.
    • ASSURANCE that the design through and through is of the highest standard.
    • ABILITY to review constructability (especially important complex roof designs and wall geometries).
    • Obtain ACCURATE material take-off reports.
    • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
    • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

    Building Information Modeling (BIM)

    ...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

    What you get...

    • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
    • Interior Perspective view (You select casing, baseboard, crown molding styles)
    • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
    • Enhanced Framing Plans (See sample pdf)
    • Complete material schedules & takeoffs
    • (1) 3-D Intelligent Structural View (Additional views upon request)

    How to order...

    ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
