House Plans > Southern Style > Plan 12-205

3 Bedroom , 3 Bath Southern House Plan #12-205

SHARE ON
SHARE ON

3 Bedroom , 3 Bath Southern House Plan #12-205

Key Specs:
  • img 3914 Sq. Ft.
  • img 3 Bedrooms
  • img 3-1/2 Baths
  • img 2 Stories
  • img 3 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

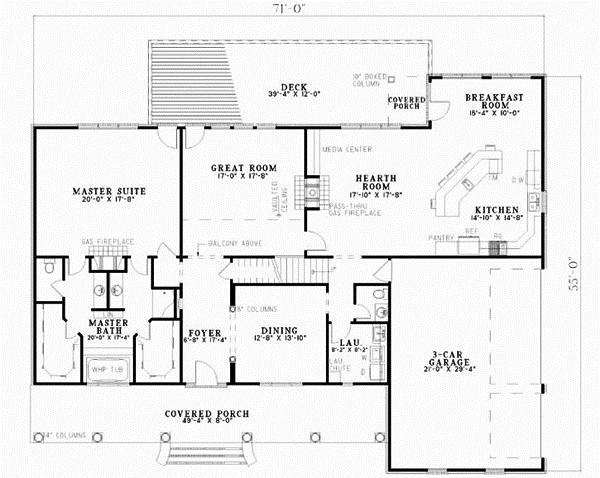

    Main Floor Plan: 12-205
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

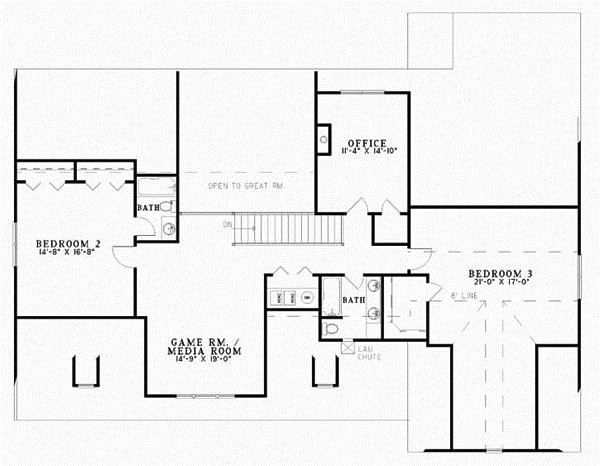

    Upper/Second Floor Plan: 12-205
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 12-205

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Visualize your family in this clever split bedroom home. Entering through the foyer, eight inch columns welcome you into the formal dining area. Enjoy family night in the great room with vaulted ceilings and a pass-through fireplace that allows everyone the enjoyment of relaxing by the fire from either the great room or hearth room. Serve the kids breakfast at the island bar that is open to the breakfast room. End each day with dinner on your rear covered porch. The children will be nestled upstairs with plenty of space of their own after playing together in the game room.

This floor plan is found in our Southern house plans section

Full Specs and Features

Total Living Area

Main floor: 2291

Upper floor: 1623

Porches: 457

Total Sq. Ft.: 3914

Beds/Baths

Bedrooms: 3

Full Baths: 3

Half Baths: 1

Garage

Garage: 616

Garage Stalls: 3

Levels

2 stories

Dimension

Width: 71' 0"

Depth: 55' 0"

Height: 26' 3"

Roof slope

9:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

9' (Main)
8' (Upper)

Foundation Options

  • Basement $299
  • Daylight basement $299
  • Crawlspace Standard With Plan
  • Slab Standard With Plan
What's included?
Exclusive Options
Optional Add-Ons

Subtotal: $0

    3-D modeling

    Taking house plans to a new level!!!

    “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

    Intelligent Sample

    iconDownload

    The Intelligent Advantage....

    ...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

    • VIEW 3-D Models from multiple vantage points.
    • ASSURANCE that the design through and through is of the highest standard.
    • ABILITY to review constructability (especially important complex roof designs and wall geometries).
    • Obtain ACCURATE material take-off reports.
    • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
    • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

    Building Information Modeling (BIM)

    ...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

    What you get...

    • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
    • Interior Perspective view (You select casing, baseboard, crown molding styles)
    • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
    • Enhanced Framing Plans (See sample pdf)
    • Complete material schedules & takeoffs
    • (1) 3-D Intelligent Structural View (Additional views upon request)

    How to order...

    ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
