2 Bedroom , 1 Bath Southwest House Plan #17-866

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

2 Bedroom , 1 Bath Southwest House Plan #17-866

Key Specs:
  • img 2429 Sq. Ft.
  • img 2 Bedrooms
  • img 1-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

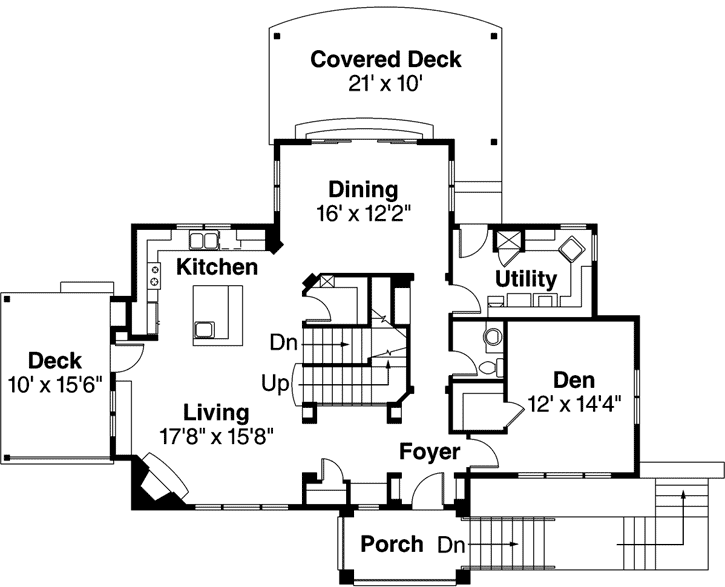

    Main Floor Plan: 17-866
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

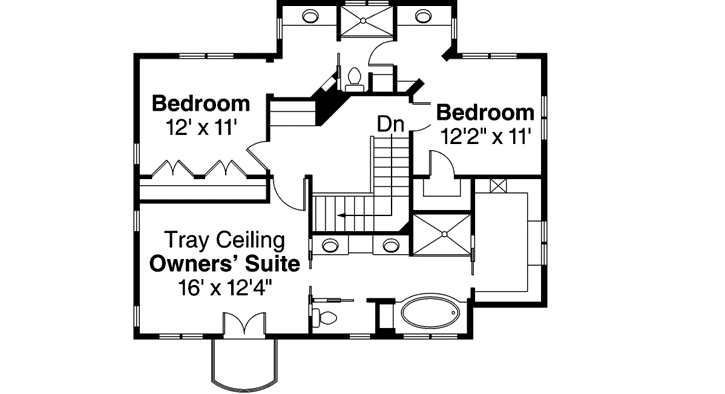

    Upper/Second Floor Plan: 17-866
  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

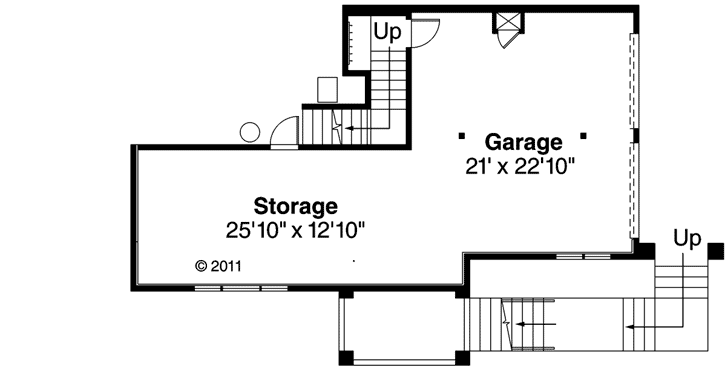

    Lower Floor Plan: 17-866
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 17-866

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

A bright tile roof caps the smooth stucco of this Southwestern-style home. Designed for construction on a slope this home has three levels. Gathering spaces are on the main floor and bedrooms are above. A roomy two-car garage and two large storage areas are below and some of those spaces are windowed. An inviting arched opening leads from the garage on the right to the handsome railed staircase that climbs gently to the main floor. A wider arch opening onto the entry porch frames the front door along with a windowed bench to the door's left. Inside art niches on both sides of the door flank the short passageway into the foyer. After entering you have three choices. To the right is a den or home office. Straight ahead an arch marks the passageway that leads to a spacious dining room windowed on three sides. That hallway also runs past a large utility room which in turn accesses a covered patio with skylights. Sliding glass doors in the dining room open to the patio as well. To the left of the foyer is an arched opening that leads into a foyer extension outfitted with a coat closet and a bench for shoe removal. The next arch opens into the welcoming living room which has a corner fireplace and recessed home entertainment center. This space is open to the gourmet kitchen and also offers access to a side deck. Upstairs owners' suite amenities include a railed balcony a large walk-in closet and a bathroom with a shower spa tub dual vanity and private toilet. Each of the other two bedrooms has direct access to a private basin then on to a shared toilet and shower.

This floor plan is found in our Southwest house plans section

Full Specs and Features

Total Living Area

Main floor: 1360

Upper floor: 1069

Porches: 483

Total Finished Sq. Ft.: 2429

Beds/Baths

Bedrooms: 2

Full Baths: 1

Half Baths: 3

Garage

Garage: 945

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 68' 0"

Depth: 52' 0"

Height: 31' 4"

Roof slope

5:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $415
  • Slab $415
