House Plan Highlights

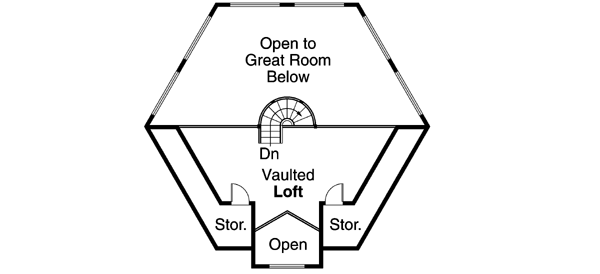

This floor plan is found in our Southwest house plans section

Foundation Options

• Basement $325
• Crawlspace $250
• Slab Standard With Plan

3-D modeling

Taking house plans to a new level!!!

“The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

Intelligent Sample

Download

The Intelligent Advantage....

...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

• VIEW 3-D Models from multiple vantage points.
• ASSURANCE that the design through and through is of the highest standard.
• ABILITY to review constructability (especially important complex roof designs and wall geometries).
• Obtain ACCURATE material take-off reports.
• Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
• We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

Building Information Modeling (BIM)

...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

What you get...

• (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
• Interior Perspective view (You select casing, baseboard, crown molding styles)
• (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
• Enhanced Framing Plans (See sample pdf)
• Complete material schedules & takeoffs
• (1) 3-D Intelligent Structural View (Additional views upon request)

How to order...

...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
