4 Bedroom , 3 Bath Traditional House Plan #12-542

SHARE ON
SHARE ON

4 Bedroom , 3 Bath Traditional House Plan #12-542

Key Specs:
  • img 1614 Sq. Ft.
  • img 4 Bedrooms
  • img 3 Full Baths
  • img Split entry
  • img 2 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

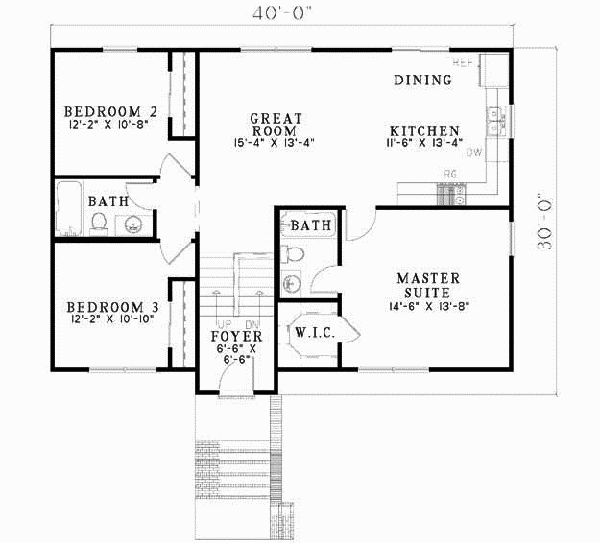

    Main Floor Plan: 12-542
  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

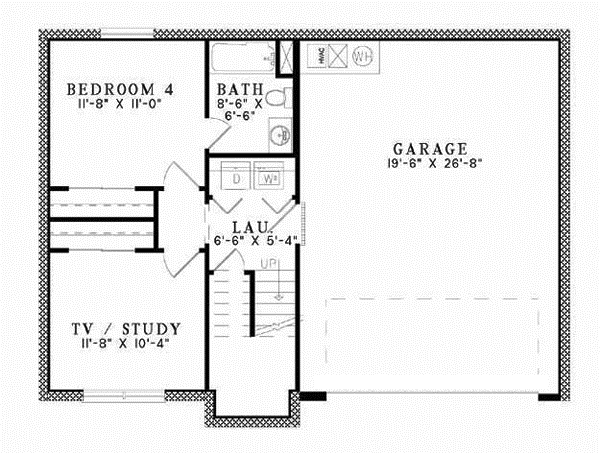

    Lower Floor Plan: 12-542

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

An entry porch with a grand ceiling height elegantly welcomes guests into this. Immediately upon entry, this split level design will lead you up to the main living areas including a large great room adjoining the kitchen and dining area, a spacious master suite and two bedrooms and full bath. The lower level option has a fourth bedroom and full bath, perfect for weekend guests or a teenager?s hideaway! The laundry room, a TV room or optional study and garage are also located on the lower level.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1134

Basement: 480

Porches: 44

Total Sq. Ft.: 1614

Beds/Baths

Bedrooms: 4

Full Baths: 3

Garage

Garage: 569

Garage Stalls: 2

Levels

split entry

Dimension

Width: 40' 0"

Depth: 30' 0"

Height: 25' 6"

Roof slope

6:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)

Foundation Options

  • Daylight basement Standard With Plan
