House Plans > Traditional Style > Plan 12-540

4 Bedroom , 2 Bath Traditional House Plan #12-540

SHARE ON
SHARE ON

4 Bedroom , 2 Bath Traditional House Plan #12-540

Key Specs:
  • img 1789 Sq. Ft.
  • img 4 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

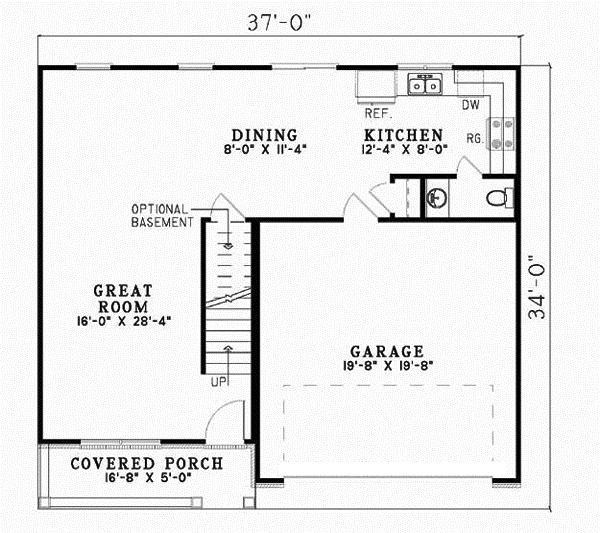

    Main Floor Plan: 12-540
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

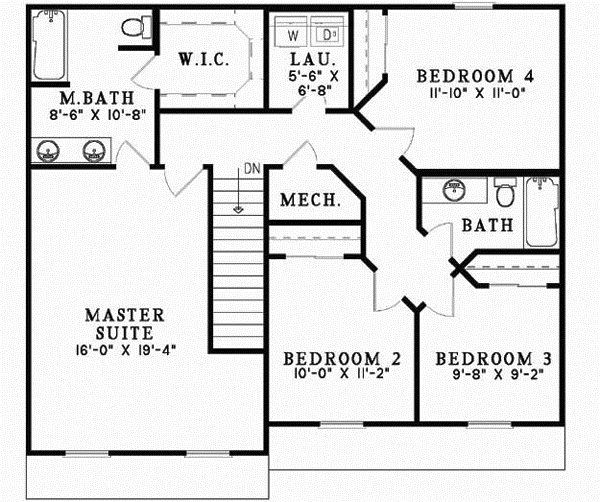

    Upper/Second Floor Plan: 12-540

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Sit back and relax in this very spacious two-story beautifully designed home. An open floor plan gives you many options for furniture placement as well as entertaining guests. The great room opens to the dining area and kitchen, which sensibly includes a half bath for convenience. The second level includes a large master bedroom suite with sizeable private bath and walk-in closet. Three additional bedrooms, a full bathroom and the laundry room complete this delightful plan.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 733

Upper floor: 1056

Porches: 83

Total Sq. Ft.: 1789

Beds/Baths

Bedrooms: 4

Full Baths: 2

Half Baths: 1

Garage

Garage: 400

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 37' 0"

Depth: 34' 0"

Height: 25' 4"

Roof slope

6:12 (primary)

6:12 (secondary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Basement $299
  • Daylight basement $299
  • Crawlspace Standard With Plan
  • Slab Standard With Plan
