3 Bedroom , 2 Bath Traditional House Plan #4-164


3 Bedroom , 2 Bath Traditional House Plan #4-164

Key Specs:
  • img 2022 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img 1 Story
  • img 2 Garages
Floor Plans

See more Specs about plan


House Plan Highlights

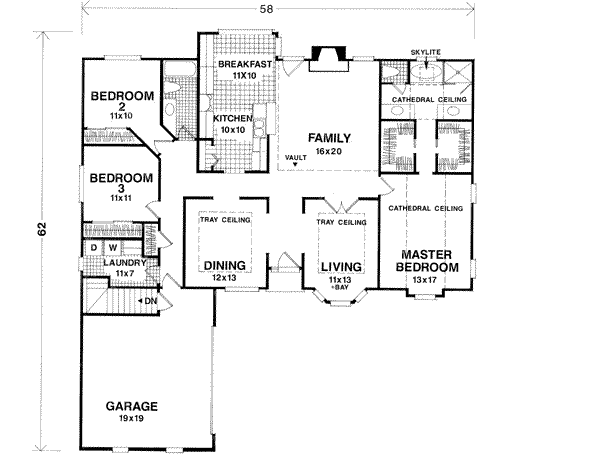

This traditional brick ranch features 2,022 sq. ft. of living space. The 16'x 20' family room has a vaulted ceiling, a fireplace and a French door leading onto a deck/patio. This design also has a formal living room, highlighted by a bay window and a roomy dining room, with a boxed trey ceiling. The corridor kitchen measures 10'x 10'and has a spacious pantry. Measuring 11'x 10', the sunny breakfast room has an abundance of windows.

This is a split-bedroom plan, with the master suite isolated from the auxiliary bedrooms. The master measures 13'x 17' and has a cathedral ceiling. Oversized his-and-hers closets lead the way to the luxurious master bath, which features separate vanities, shower and a garden tub which is brightened by a sunlight. The remaining two bedrooms, measuring 11'x 10' and 11'x 11', share a hall bath. A functional laundry room completes this design. This floor plan is shown for a basement foundation, however could be built on a slab or crawl-space.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 2022

Total Sq. Ft.: 2022


Bedrooms: 3

Full Baths: 2


Garage Stalls: 2


1 story


Width: 58' 0"

Depth: 62' 0"

Height: 21' 6"

Roof slope

8:12 (primary)

Walls (exterior)


Ceiling heights

8' (Main)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $250
  • Slab $250
