House Plans > Traditional Style > Plan 7-860

3 Bedroom , 2 Bath Traditional House Plan #7-860

SHARE ON
  • 7-860e.webp
Reverse
  • 7-860e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Unit A - 1,023 sq. ft. Unit B - 1,237 sq. ft.

3 Bedroom , 2 Bath Traditional House Plan #7-860

Key Specs:
  • img 2260 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img 1 Story
  • img 4 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

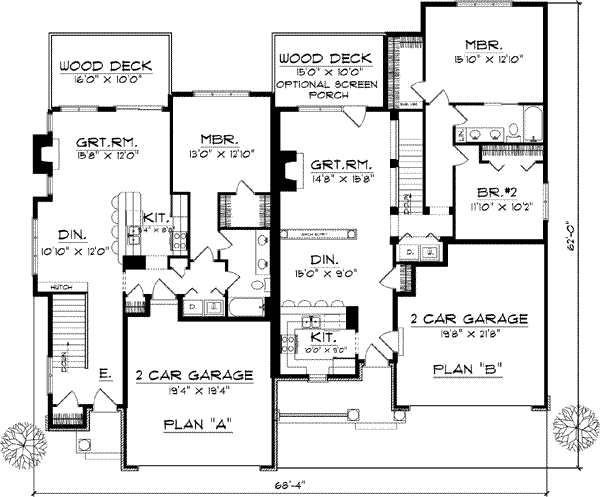

    Main Floor Plan: 7-860
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 7-860

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This traditional duplex consists of a one and a two bedroom unit both with extra design touches that make them unique. Unit A is the one bedroom unit with an open living area that's designed for entertaining. The master suite includes a walk-in closet and a private bath. A fireplace in the great room and a built-in hutch in the dining areas are just a couple of extra amenities found in this unit. A breakfast bar that opens to the dining area where you'll love the arched opening flanked home defines the second by columns for an added design touch. The bedrooms are located on the right side of the home where you'll also find a full bath shared by both. Two-stall garages complete each home.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 2260

Total Finished Sq. Ft.: 2260
Beds/Baths

Bedrooms: 3

Full Baths: 2
Garage

Garage: 800

Garage Stalls: 4
Levels

1 story
Dimension

Width: 68' 4"

Depth: 62' 0"

Height: 24' 10"
Roof slope

6:12 (primary)

8:12 (secondary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1469

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1559

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • Reproducible $2147

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. It is sent to you by mail.

  • PDF (recommended) $2147

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • CAD $4181

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650
