4 Bedroom , 3 Bath Traditional House Plan #17-541

SHARE ON
SHARE ON

4 Bedroom , 3 Bath Traditional House Plan #17-541

Key Specs:
  • img 2471 Sq. Ft.
  • img 4 Bedrooms
  • img 3 Full Baths
  • img 2 Stories
  • img 3 Garages

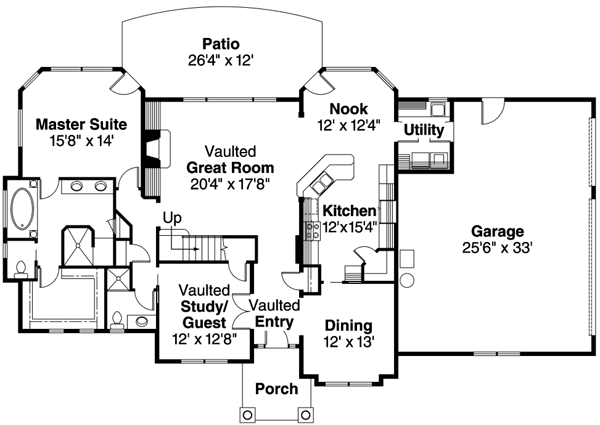

Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Stone veneer bases support the smooth wooden columns that accent the lofty porch's arched opening in this European home plan. Inside, the window-bright vaulted entry and great room are two stories high. Vaulted ceilings also expand the volume of the study/guest room and front bedroom upstairs. The roomy kitchen has a bayed nook.

Families seeking a home with abundant natural light throughout will find plenty to appreciate in this design. Outside, notice the graceful arched transoms crowning the entry, and wide, multipaned windows on both sides. Stone veneer bases support smooth, wooden columns to create a dramatic front porch.
Inside the two-story vaulted entry, artificial light is rarely necessary during daylight hours. The same holds true for the vaulted great room, where two sets of windows (upper and lower) fill most of the rear wall. A gas fireplace, flanked by shelves or cabinets, provides a cheerful focal point when skies turn gray or dark.
Standing at the kitchen sink, you face into the great room across a raised eating and conversation bar. The sunny nook, too, is totally open to this large gathering space. But the main working area of the kitchen is more secluded, allowing cooks to conceal messy counters from guests, when desired.
A guest room, home office or study is across the entry from the dining room. Double doors access this vaulted space. On the opposite wall, a pocket door provides direct access to the main bathroom.
Light washes into the Crestwick's nearly octagonal master suite through multipaned windows on four sides. One of the windows is actually a French door that opens onto the patio. This could be especially handy if the owners decided to install an outdoor spa.
The luxurious master bathroom already boasts a spa tub, along with a walk-in shower, dual vanity, private toilet and large walk-in closet.

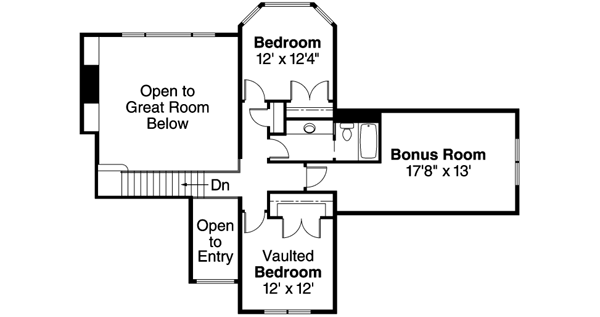

Two more bedrooms, a bathroom, and a deep bonus room are upstairs. The front bedroom is vaulted; the rear one is expanded by a bay window.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 1903

Upper floor: 568

Bonus: 309

Total Sq. Ft.: 2471

Beds/Baths

Bedrooms: 4

Full Baths: 3

Garage

Garage: 810

Garage Stalls: 3

Levels

2 stories

Dimension

Width: 78' 0"

Depth: 46' 0"

Height: 27' 6"

Roof slope

8:12 (primary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)

Foundation Options

  • Basement $325
  • Crawlspace Standard With Plan
  • Slab $250
What's included?
Optional Add-Ons

Subtotal: $0

      3-D modeling

      Taking house plans to a new level!!!

      “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

      Intelligent Sample

      iconDownload

      The Intelligent Advantage....

      ...gives you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

      • VIEW 3-D Models from multiple vantage points.
      • ASSURANCE that the design through and through is of the highest standard.
      • ABILITY to review constructability (especially important complex roof designs and wall geometries).
      • Obtain ACCURATE material take-off reports.
      • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
      • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

      Building Information Modeling (BIM)

      ...is used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

      What you get...

      • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
      • Interior Perspective view (You select casing, baseboard, crown molding styles)
      • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
      • Enhanced Framing Plans (See sample pdf)
      • Complete material schedules & takeoffs
      • (1) 3-D Intelligent Structural View (Additional views upon request)

      How to order...

      ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
