House Plans > Traditional Style > Plan 7-863

4 Bedroom , 4 Bath Traditional House Plan #7-863

SHARE ON
  • 7-863e.webp
Reverse
  • 7-863e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Unit A - 1,247 sq. ft. Unit B - 1,253 sq. ft.

4 Bedroom , 4 Bath Traditional House Plan #7-863

Key Specs:
  • img 2500 Sq. Ft.
  • img 4 Bedrooms
  • img 4 Full Baths
  • img 1 Story
  • img 4 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

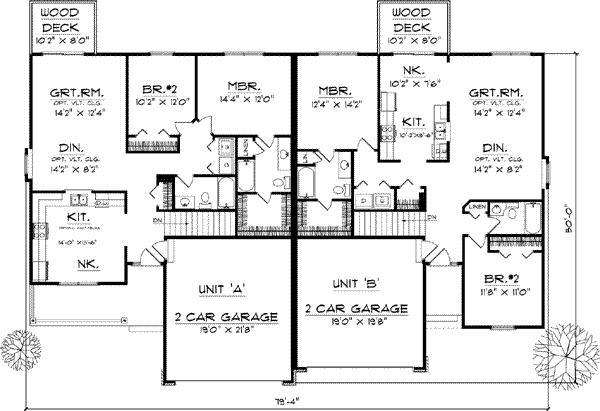

    Main Floor Plan: 7-863
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 7-863

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Although similar in size each unit of this duplex home is completely different in design offering buyers a fantastic buying choice. Vaulted ceilings can be found throughout the main living area adding volume to the space. The kitchen features a pass-through window to the dining room which flows directly into the great room beyond. The master suite and one additional bedroom are located behind the garage. Unit B also has ten-foot and vaulted ceilings in the main living area. The kitchen also features a pass-through window but is located adjacent to the great and dining rooms. The master suite is located behind the garage while the second bedroom is located to your right just off the entry.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 2500

Total Finished Sq. Ft.: 2500
Beds/Baths

Bedrooms: 4

Full Baths: 4
Garage

Garage: 786

Garage Stalls: 4
Levels

1 story
Dimension

Width: 79' 4"

Depth: 50' 0"

Height: 22' 2"
Roof slope

6:12 (primary)

6:12 (secondary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1625

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $1724

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • Reproducible $2375

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. It is sent to you by mail.

  • PDF (recommended) $2375

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • CAD $4625

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650
