4 Bedroom , 4 Bath Traditional House Plan #7-843

SHARE ON
  • 7-843e.webp
Reverse
  • 7-843e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

Unit A - 1499 sq. ft. Unit B - 1,415 sq. ft.

4 Bedroom , 4 Bath Traditional House Plan #7-843

Key Specs:
  • img 2914 Sq. Ft.
  • img 4 Bedrooms
  • img 4 Full Baths
  • img 1 Story
  • img 4 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

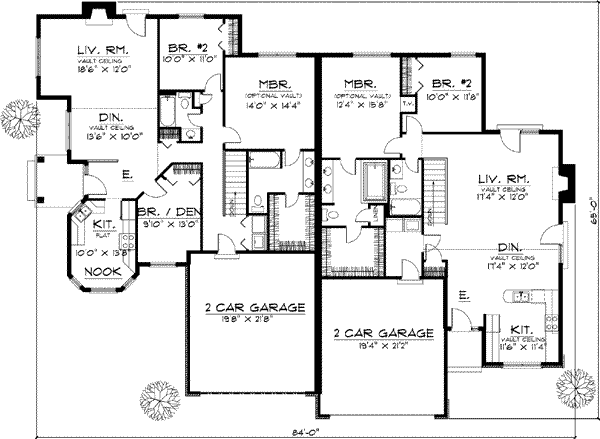

    Main Floor Plan: 7-843
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 7-843

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Unit A of this traditional duplex is larger than Unit B and is highlighted by a bay window in the kitchen and nook area just off the entry. The living and dining rooms of Unit A feature vaulted ceilings and work together to create a living space large enough for entertaining. The master suite in this unit lies behind the garage and includes a large walk-in closet. The second bedroom is just next to the master at the back of the unit and has direct access to the full bath just off the hall. A third bedroom can double as a den just off the entry. Unit B is slightly smaller and is only a 2-bedroom unit. A breakfast bar in the kitchen overlooks the dining and living rooms and blends to create an open plan. Vaulted ceilings can be found throughout this area. The master suite also lies just behind the garage and it too has a large walk-in closet. The second bedroom is found next to the master at the back of the unit.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 2914

Total Finished Sq. Ft.: 2914
Beds/Baths

Bedrooms: 4

Full Baths: 4
Garage

Garage: 874

Garage Stalls: 4
Levels

1 story
Dimension

Width: 84' 0"

Depth: 65' 0"

Height: 23' 6"
Roof slope

8:12 (primary)

6:12 (secondary)
Walls (exterior)

2"x6"
Ceiling heights

8' (Main)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $1894

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • 8-set $2010

    This is the basic package that includes what most owner/builders need and includes 8 printed sets.

  • Reproducible $2768

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. It is sent to you by mail.

  • PDF (recommended) $2768

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • CAD $5390

    This is the package you would want to buy if you are planning on making substantial modifications . Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Basement Standard With Plan
  • Crawlspace $650
  • Slab $650
