1 Bedroom , 1 Bath Traditional House Plan #77-313

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Traditional House Plan #77-313

Key Specs:
  • img 656 Sq. Ft.
  • img 1 Bedrooms
  • img 1 Full Baths
  • img 2 Stories
  • img 1 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

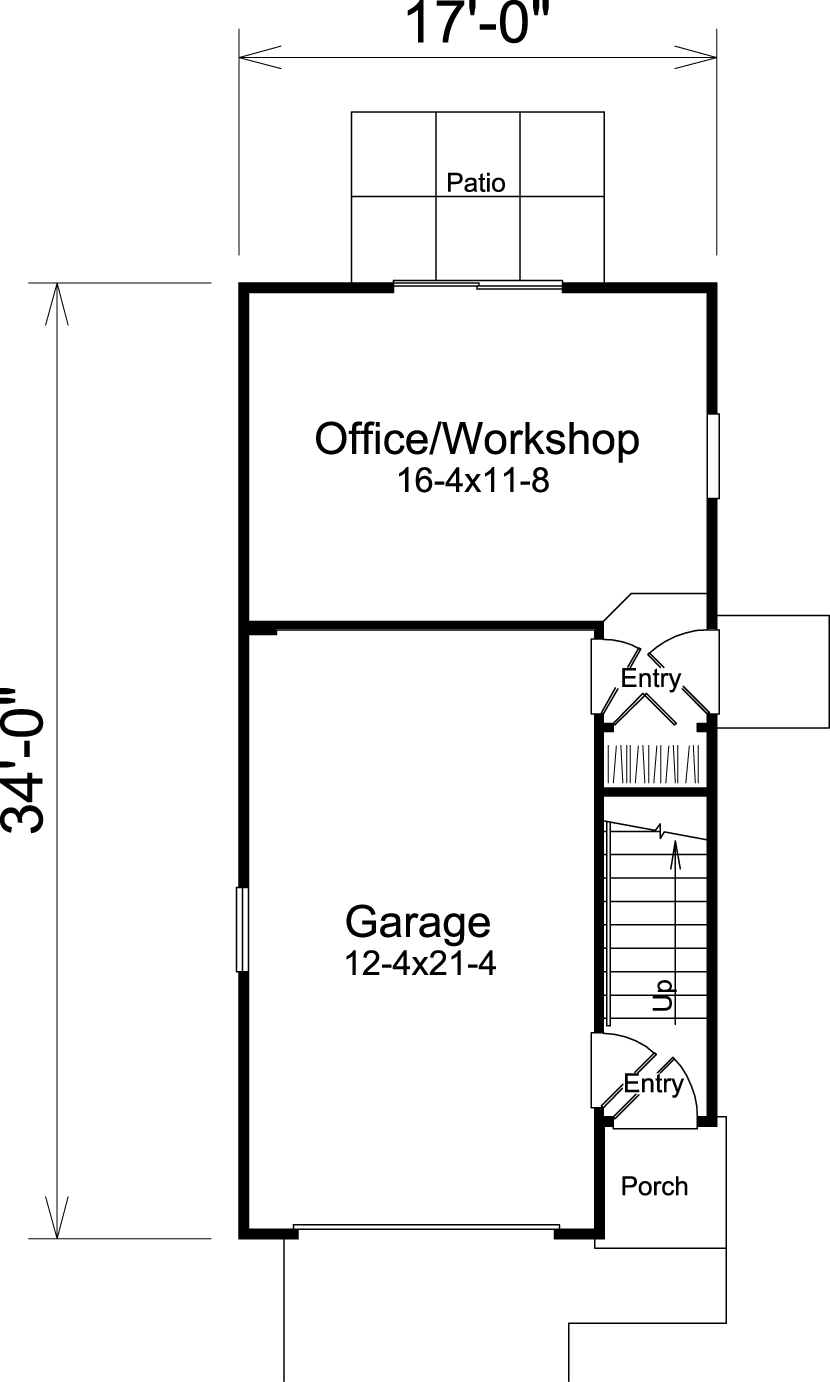

    Main Floor Plan: 77-313
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

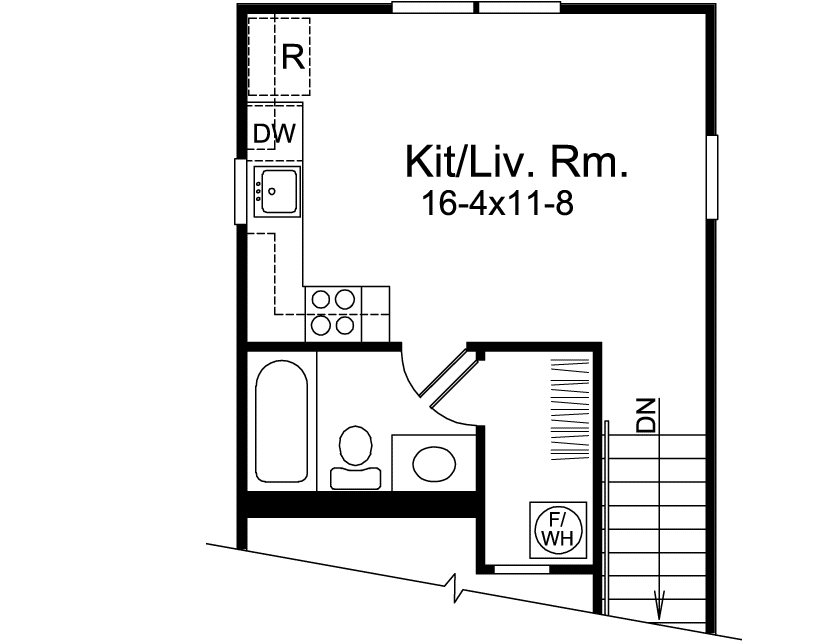

    Upper/Second Floor Plan: 77-313
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 77-313

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Studio Apartment Garage With Office656 total square feet of living areaSpecial featuresThis home features a simple but cleverly designed exterior that disguises this two-story building as a one-story designThe room located behind the garage has sliding glass doors to the rear patio and is the perfect room for an officeBoth the garage and apartment can be accessed from a main entranceThe cozy studio apartment boasts a well-equipped kitchenette full bath and a closetmechanical roomStudio room 1 bath 1-car garageSlab foundation286 square feet on the first floor and 370 square feet on the second floor

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 286

Upper floor: 370

Total Finished Sq. Ft.: 656

Beds/Baths

Bedrooms: 1

Full Baths: 1

Garage

Garage: 252

Garage Stalls: 1

Levels

2 stories

Dimension

Width: 17' 0"

Depth: 34' 0"

Height: 23' 0"

Roof slope

7:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Slab Standard With Plan
