House Plans > Traditional Style > Plan 77-269

1 Bedroom , 1 Bath Traditional House Plan #77-269

SHARE ON
  • 77-269e.webp
Reverse
  • 77-269e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

1 Bedroom , 1 Bath Traditional House Plan #77-269

Key Specs:
  • img 831 Sq. Ft.
  • img 1 Bedrooms
  • img 1-1/2 Baths
  • img 2 Stories
  • img 4 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

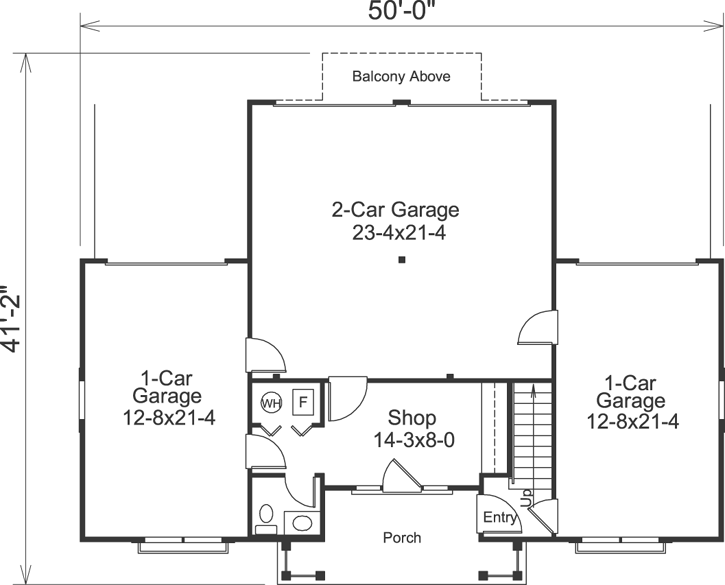

    Main Floor Plan: 77-269

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

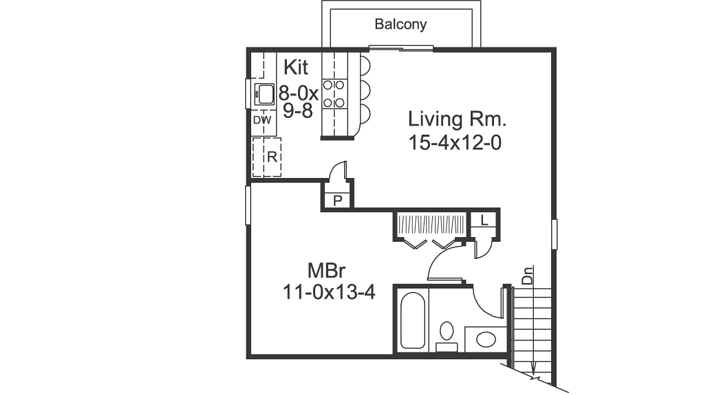

    Upper/Second Floor Plan: 77-269
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 77-269

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Four-Car Apartment Garage With Shop831 total square feet of living areaSpecial featuresThis home features an attractive single-story appearance with an lovely gabled porchThe shop room has a half bath built-in cabinets access to the spacious front porch and both the single-car and two-car garages The second floor apartment includes a kitchen with convenient snack bar a living room with rear balcony and large bedroom with hall bath1 bedroom 1 12 baths 4-car rear entry garageSlab foundation255 square feet on the first floor and 576 square feet on the second floor

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 255

Upper floor: 576

Porches: 108

Total Finished Sq. Ft.: 831
Beds/Baths

Bedrooms: 1

Full Baths: 1

Half Baths: 1
Garage

Garage: 1038

Garage Stalls: 4
Levels

2 stories
Dimension

Width: 50' 0"

Depth: 34' 4"

Height: 26' 0"
Roof slope

5:12 (primary)

10:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

8' (Main)
9' (Upper)

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • 5-set $750

    This is the basic package that includes what most owner/builders need and includes 5 printed sets.

  • PDF (recommended) $700

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1000

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • Single $650

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Slab Standard With Plan
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE
