2 Bedroom , 2 Bath Traditional House Plan #4-103

SHARE ON
SHARE ON

2 Bedroom , 2 Bath Traditional House Plan #4-103

Key Specs:
  • img 999 Sq. Ft.
  • img 2 Bedrooms
  • img 2 Full Baths
  • img Split entry
  • img 2 Garages
Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

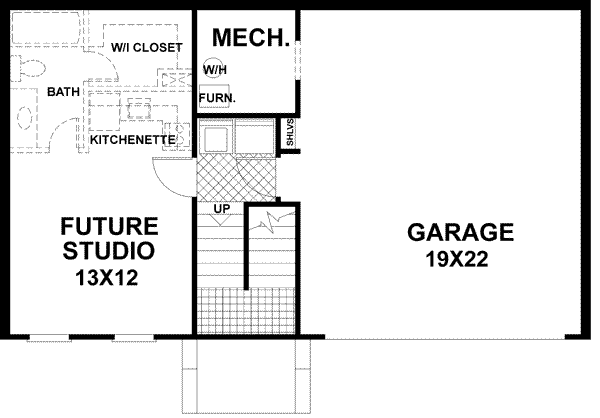

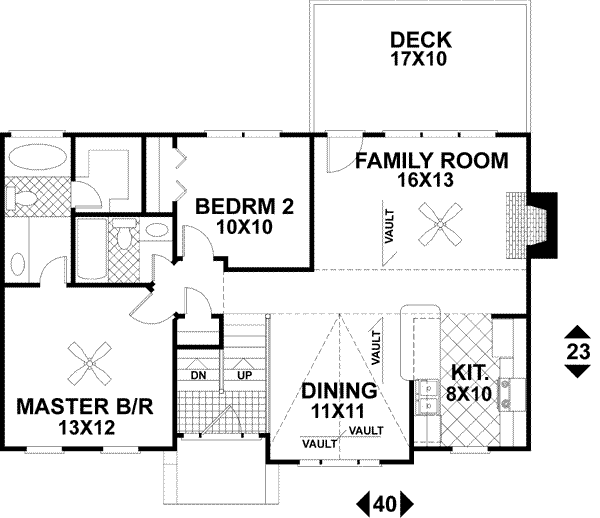

This exceptional split-foyer home blends a rare mixture of luxury and economy. Careful design provides extravagant features while remaining a compact and economical 999 square feet. The dramatic entry is brightened by the glass door with sidelights and an arched transom. A vaulted family room, dining room, and kitchen provide a feeling of spaciousness. The family room is accented with a fireplace, triple window unit, and a French door leading to the 17 x 11 deck. A breakfast bar and an abundance of cabinets are highlights of the corridor kitchen. The master suite has a walk-in closet and large bath with a 5' vanity and garden tub. A second bedroom and bath complete the main level. On the lower level along with the garage are the laundry and a future studio. This 300 square foot expansion space may serve as a second master suite or apartment, and features a kitchenette.

This floor plan is found in our Traditional house plans section

Full Specs and Features

Total Living Area

Main floor: 963

Upper floor: 36

Total Sq. Ft.: 999

Beds/Baths

Bedrooms: 2

Full Baths: 2

Garage

Garage Stalls: 2

Levels

split entry

Dimension

Width: 40' 0"

Depth: 23' 0"

Height: 28' 6"

Roof slope

10:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)

Foundation Options

  • Daylight basement Standard With Plan
  • Crawlspace $250
  • Slab $250
