3 Bedroom , 2 Bath Cottage House Plan #23-497

SHARE ON
  • 23-497e.webp
Reverse
  • 23-497e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

3 Bedroom , 2 Bath Cottage House Plan #23-497

Key Specs:
  • img 2393 Sq. Ft.
  • img 3 Bedrooms
  • img 2 Full Baths
  • img 1 Story
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

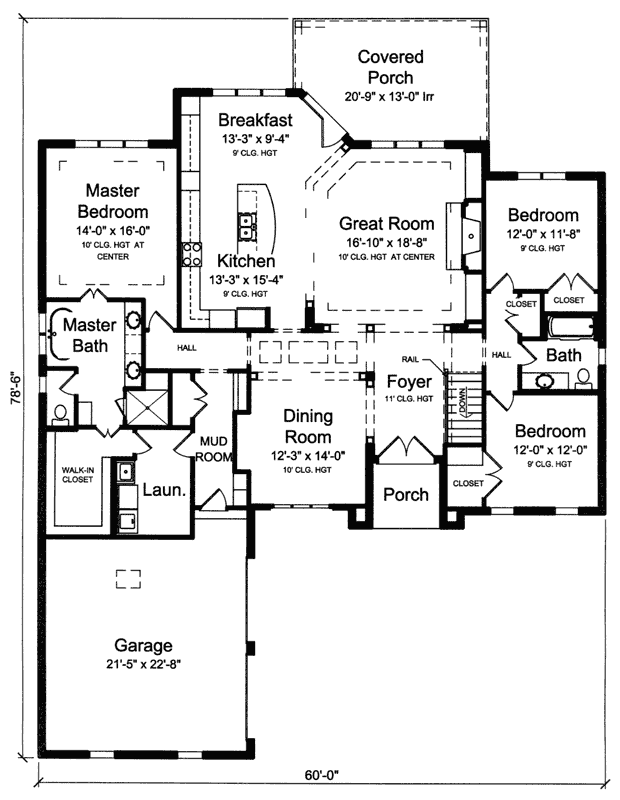

    Main Floor Plan: 23-497

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

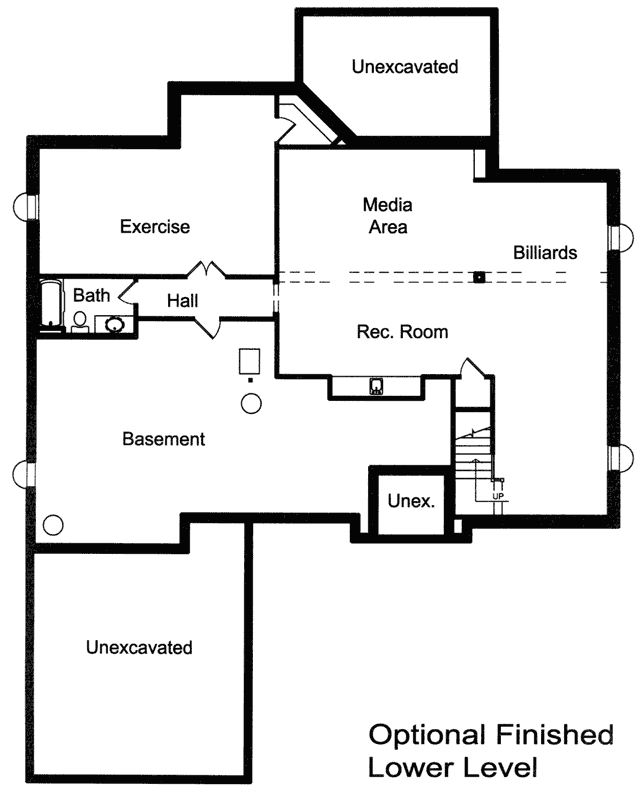

    Lower Floor Plan: 23-497
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 23-497

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

ulliThis beautiful one level home with brick exterior offers an open floor plan split bedrooms high ceilings and a covered rear porch for outdoor enjoyment. lili Formal and informal dining spaces provide for all occasions while the large island with seating defines the Kitchen. lili The master suite showcases a whirlpool tub double bowl vanity shower and large walk-in closet. lili A full basement is provided providing additional square footage or storage. liul

This floor plan is found in our Cottage house plans section

Full Specs and Features

Total Living Area

Main floor: 2393

Basement: 1477

Porches: 246

Total Finished Sq. Ft.: 2393
Beds/Baths

Bedrooms: 3

Full Baths: 2
Garage

Garage: 493

Garage Stalls: 2
Levels

1 story
Dimension

Width: 60' 0"

Depth: 78' 6"

Height: 26' 0"
Roof slope

8:12 (primary)

12:12 (secondary)
Walls (exterior)

2"x4"
Ceiling heights

9' (Main)
Exterior Finish

Brick
Roof Framing

Truss

Foundation Options

  • Basement Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

  • PDF (recommended) $1050

    This is the package you would want to buy if you are planning on making minor modifications to the drawings. Although this is not an "Instant Download", it is the fastest way to receive your plan order, and, you save the shipping costs.

  • Unlimited Build - PDF $1425

    This is the package you would want to by if you are a professional builder wanting to build multiple house from this design. this comes with the PDF file AND the unlimited build license.

  • PDF + 5 $1100

    This is the package you would want to buy if you are not making modifications to the drawings and also want 5 printed sets. This includes a single license to build.

  • Unlimited Build - CAD $1775

    This is the package you would want to buy if you are a professional builder wanting to build multiple houses from this design. This comes with the CAD file AND the unlimited build license

  • Single $820

    This is the appropriate package to buy if have decided on a particular plan and want to be able to get firm bids for moving forward. This set will be stamped "NOT FOR CONSTRUCTION" and will not contain a license to build. These are most often emailed to you as a PDF file.

  • Basement Standard With Plan
Monster Material List
Optional Add-Ons

Subtotal: $0

OR BUY COST TO BUILD ESTIMATE

House Plan Features
