4 Bedroom , 2 Bath Craftsman House Plan #36-110

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 2 Bath Craftsman House Plan #36-110

Key Specs:
  • img 1708 Sq. Ft.
  • img 4 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

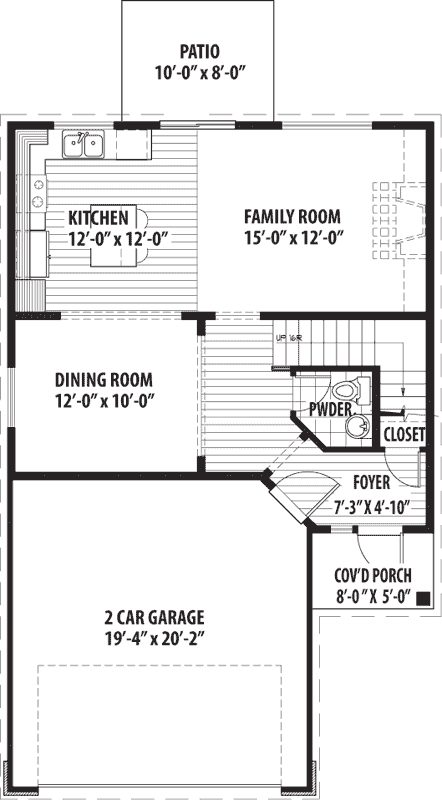

    Main Floor Plan: 36-110
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

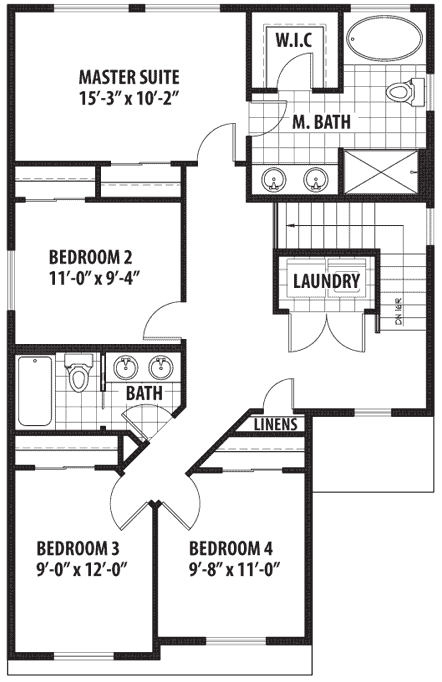

    Upper/Second Floor Plan: 36-110
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 36-110

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area

Main floor: 692

Upper floor: 1016

Total Finished Sq. Ft.: 1708

Beds/Baths

Bedrooms: 4

Full Baths: 2

Half Baths: 1

Garage

Garage: 404

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 28' 0"

Depth: 44' 0"

Height: 24' 9"

Roof slope

5:12 (primary)

7:12 (secondary)

Walls (exterior)

2"x6"

Ceiling heights

9' (Main)
8' (Upper)

Exterior Finish

Combination

Roof Framing

Truss

Foundation Options

  • Slab Standard With Plan

Plan Purchase Options

What's included?

Please uncheck first "Purchase MML without any plan package" under MONSTER MATERIAL LIST

Monster Material List
Optional Add-Ons

Subtotal: $0

Frequently Asked Questions About This Plan

  • I am very interested in this plan - we love the hearthroom concept in this one. On the brief floorplan it indicates knee walls upstairs - how tall are the side walls in the bedrooms and the bathroom upstairs? Does the foundation follow the master bedroom wall or is it cantilevered out? Thanks in advance for your help.

    The bedroom knee walls will clip down to 6’-2” on the bedroom walls. The walk-in closet to wall clips down to 5’-6”. The bay window of the master is currently cantilevered over the foundation just to keep the foundation from having the angles.
