4 Bedroom , 2 Bath Craftsman House Plan #23-504

SHARE ON
  • 23-504e.webp
Reverse
  • 23-504e.webp
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

4 Bedroom , 2 Bath Craftsman House Plan #23-504

Key Specs:
  • img 2303 Sq. Ft.
  • img 4 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans What's included?

  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

    Main Floor

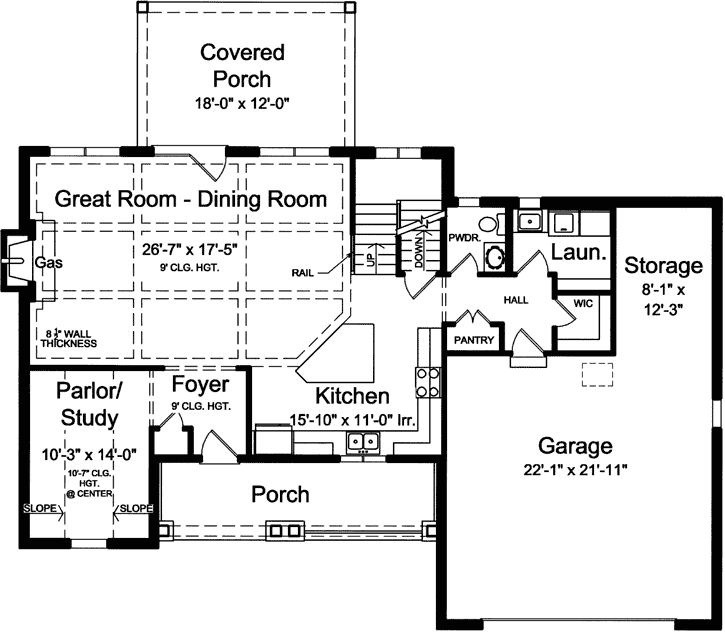

    Main Floor Plan: 23-504

  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse

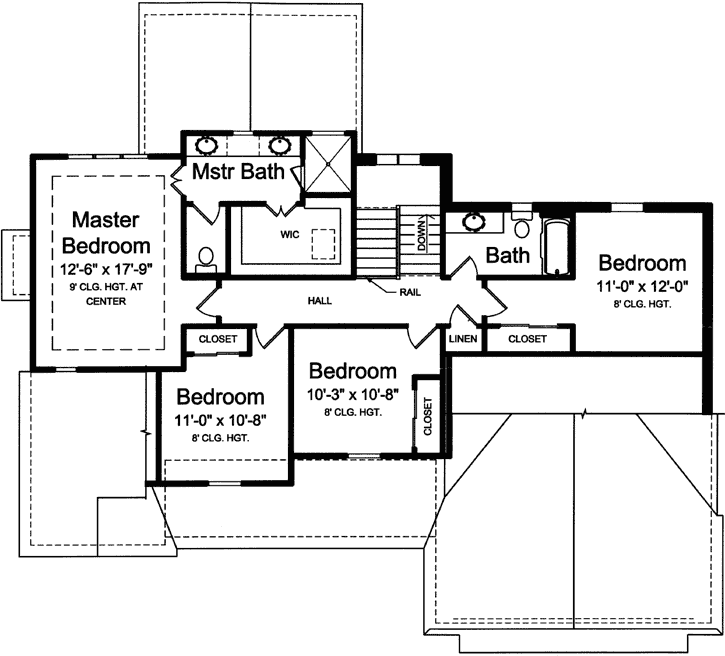

    Upper/Second Floor Plan: 23-504

  • Lower Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Lower Floor Plan: 23-504
Rear/Alternate Elevations

  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Reverse
    Rear Elevation Plan: 23-504

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

ulliThis delightful 2 story home offers an open floor plan concept while maintaining a quiet intimate space at the ParlorStudy. lili The Great Room and Dining Room are topped with a beamed ceiling and a gas fireplace decorates the area with its warmth and charm. lili The spacious Kitchen is anchored by a large island and enjoys the convenience of a pantry and large walk-in closet at the rear entry hall. lili Turnaround stairs lead to a 4 bedroom second floor with the Master Suite close at hand for the younger family members. lili All of these features make this home a wonderful option for your growing family. liul

This floor plan is found in our Craftsman house plans section

Full Specs and Features

Total Living Area

Main floor: 1188

Upper floor: 1115

Basement: 1188

Porches: 368

Total Finished Sq. Ft.: 2303
Beds/Baths

Bedrooms: 4

Full Baths: 2

Half Baths: 1
Garage

Garage: 581

Garage Stalls: 2
Levels

2 stories
Dimension

Width: 58' 0"

Depth: 39' 10"

Height: 29' 0"
Roof slope

8:12 (primary)

10:12 (secondary)
Walls (exterior)

2"x6"
Ceiling heights

9' (Main)
8' (Upper)
Exterior Finish

Brick
Roof Framing

Truss

Foundation Options

  • Basement Standard With Plan
