3 Bedroom , 2 Bath Mediterranean House Plan #4-161

SHARE ON
SHARE ON

3 Bedroom , 2 Bath Mediterranean House Plan #4-161

Key Specs:
  • img 1873 Sq. Ft.
  • img 3 Bedrooms
  • img 2-1/2 Baths
  • img 2 Stories
  • img 2 Garages
Floor Plans
Rear/Alternate Elevations

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

This 2,005 sq.ft. European traditional home features a drive-under two-car garage. The 8'x11' foyer has a coat closet and powder room. Measuring 18'x16', the living room features a fireplace and double French doors leading onto a balcony. The gourmet kitchen with center island has an 18'x8' breakfast room which leads onto the rear deck. Featured on the upper level is a 15'x15' master bedroom with trey ceiling. The master bathroom features separate tub and shower, and a large walk-in closet off of the dressing area. Bedrooms 2 and 3 share a private bath. The laundry is conveniently located on the upper level.

This floor plan is found in our Mediterranean house plans section

Full Specs and Features

Total Living Area

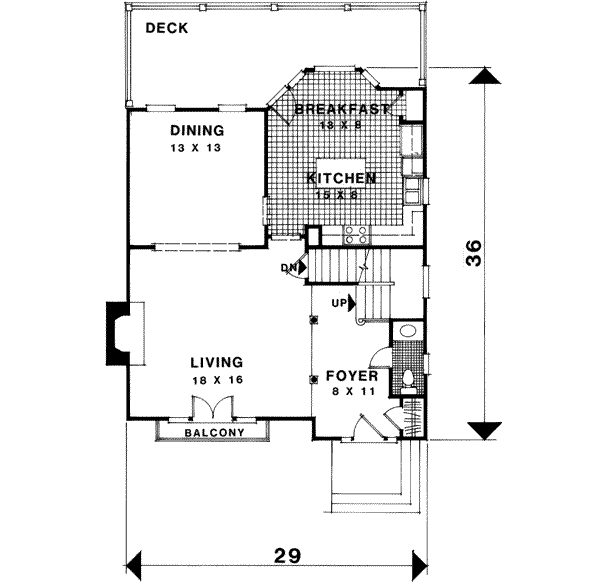

Main floor: 946

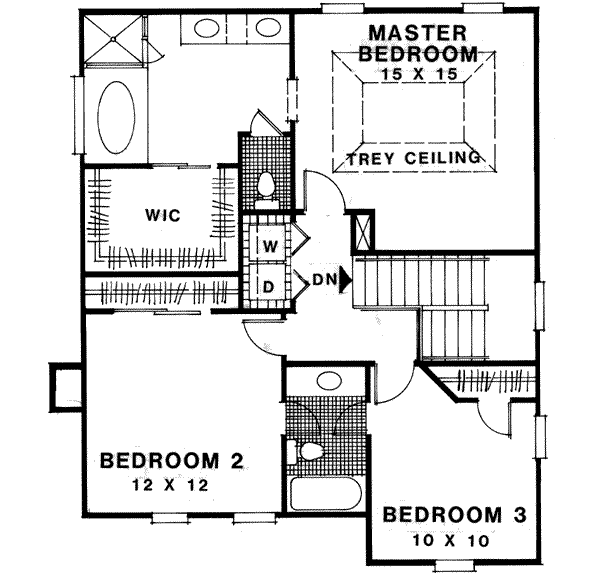

Upper floor: 927

Total Sq. Ft.: 1873

Beds/Baths

Bedrooms: 3

Full Baths: 2

Half Baths: 1

Garage

Garage Stalls: 2

Levels

2 stories

Dimension

Width: 29' 0"

Depth: 36' 0"

Height: 42' 0"

Roof slope

12:12 (primary)

Walls (exterior)

2"x4"

Ceiling heights

8' (Main)
8' (Upper)

Foundation Options

  • Basement Standard With Plan
  • Crawlspace $250
  • Slab $250
