Traditional House Plan - 3 Bedrooms, 1 Bath, 2504 Sq Ft Plan 5-109
  • FATHER'S DAY SALE - 15% OFF - Use Coupon DAD2024

House Plans > Traditional Style > Plan 5-109

3 Bedroom , 1 Bath Traditional House Plan #5-109

SHARE ON
SHARE ON

All plans are copyrighted by the individual designer.

Photographs may reflect custom changes that were not included in the original design.

Design Comments

"This designer does not include electrical layouts with their designs."
"Allow up to 15 business days for delivery."

3 Bedroom , 1 Bath Traditional House Plan #5-109

Key Specs:
  • img 2504 Sq. Ft.
  • img 3 Bedrooms
  • img 1-1/2 Baths
  • img Split entry
Floor Plans What's included?
  • Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Main Floor

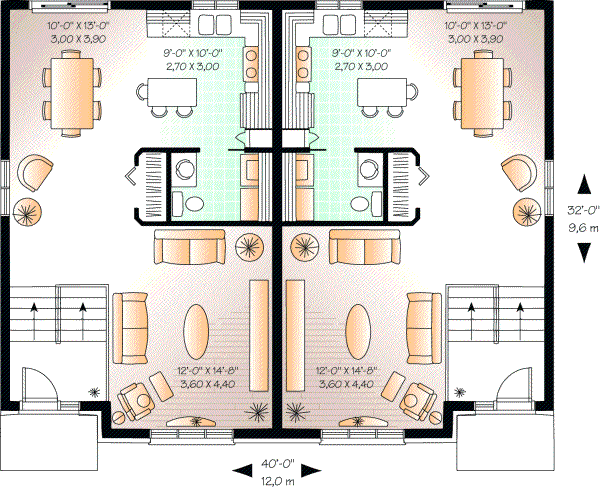

    Main Floor Plan: 5-109
  • Upper/Second Floor

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

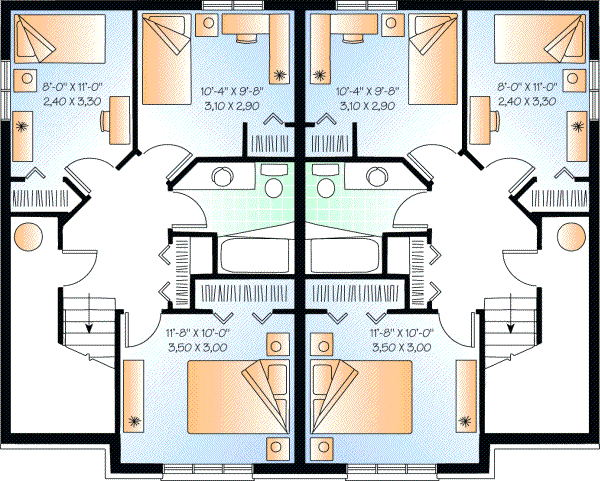

    Upper/Second Floor Plan: 5-109
Rear/Alternate Elevations
  • Rear Elevation

    Clicking the Reverse button does not mean you are ordering your plan reversed. It is for visualization purposes only. You may reverse the plan by ordering under “Optional Add-ons”.

    Rear Elevation Plan: 5-109

See more Specs about plan

FULL SPECS AND FEATURES

House Plan Highlights

Full Specs and Features

Total Living Area

Main floor: 1252

Upper floor: 1252

Basement: 626

Total Finished Sq. Ft.: 2504

Beds/Baths

Bedrooms: 3

Full Baths: 1

Half Baths: 1

Levels

split entry

Dimension

Width: 40' 0"

Depth: 32' 0"

Height: 21' 2"

Walls (exterior)

2"x6"

Ceiling heights

8' (Main)

Foundation Options

  • Daylight basement Standard With Plan
