5 Bedroom , 5 Bath Waterfront House Plan #102-101


5 Bedroom , 5 Bath Waterfront House Plan #102-101

Key Specs:
  • img 3854 Sq. Ft.
  • img 5 Bedrooms
  • img 5-1/2 Baths
  • img 3 Stories
  • img 2 Garages

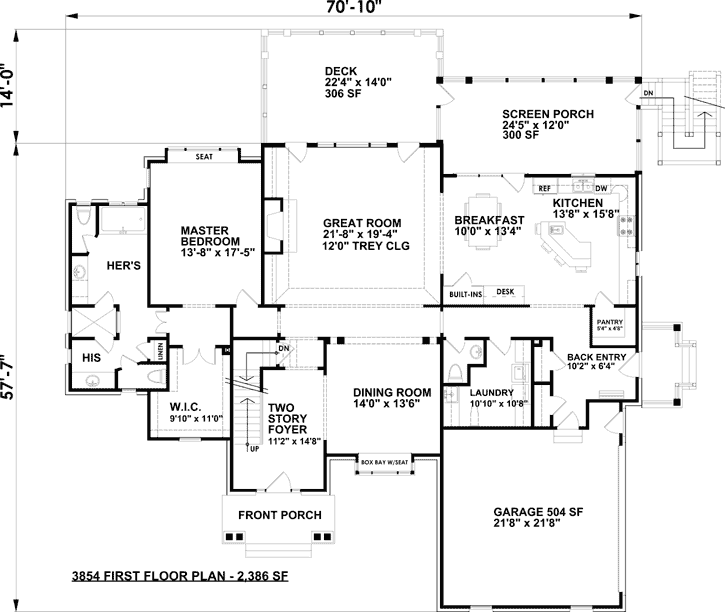

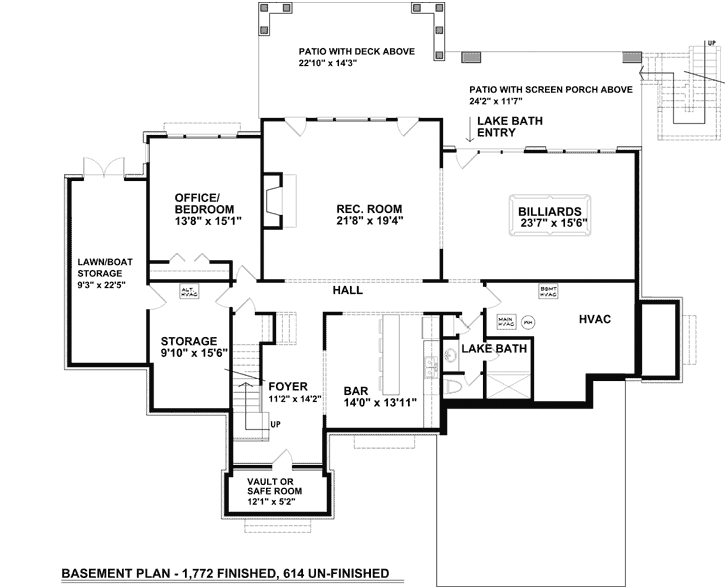

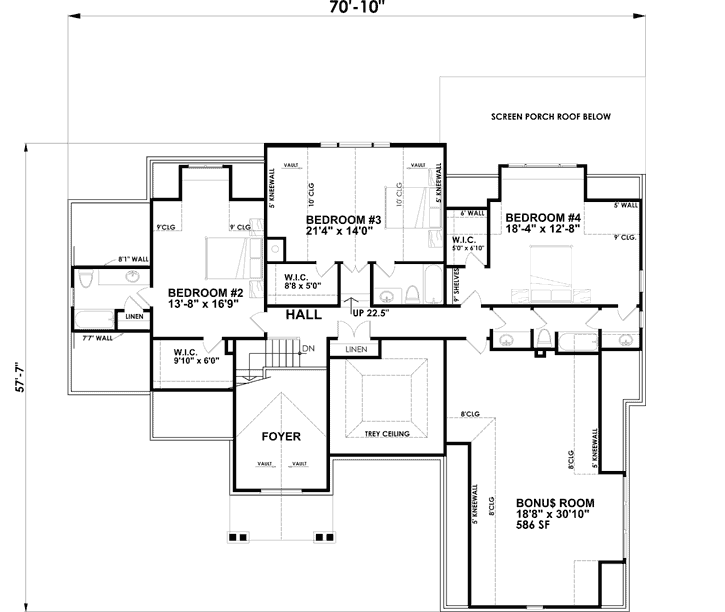

Floor Plans
Rear/Alternate Elevations

See more Specs about plan


House Plan Highlights

  • Ideal for the beach, a lake or in the mountains.
  • Every Bedroom, Master Bath, Great Room, Breakfast, Kitchen, Rec. Room, Bar and Billiard Room has a view of the lake.
  • Safe Room or Vault built with reinforced concrete.
  • Basement Lawn Equipment or Boat Storage Room.
  • Beautiful Brick, Stone, Siding and Cedar Shake exterior.
  • Large Deck, Screen Porch and Patios all face the water.
  • Enormous Bonus Room.
  • Bay Windows in Dining Room and Master.
  • Large Great Room with twelve foot trey ceiling.

This floor plan is found in our Waterfront house plans section

Full Specs and Features

Total Living Area

Main floor: 2386

Upper floor: 1468

Lower Floor: 1772

Basement: 616

Bonus: 587

Porches: 300

Total Sq. Ft.: 3854


Bedrooms: 5

Full Baths: 5

Half Baths: 1


Garage: 504

Garage Stalls: 2


3 stories


Width: 70' 10"

Depth: 65' 9"

Height: 25' 0"

Roof slope

12:12 (primary)

Walls (exterior)


Ceiling heights

10' (Main)
9' (Upper)
10' (Lower)

Exterior Finish


Foundation Options

  • Basement Standard With Plan
  • Walk-out basement Standard With Plan
What's included?
Optional Add-Ons

Subtotal: $0

      3-D modeling

      Taking house plans to a new level!!!

      “The difference between our Intelligent House Plans and typical stock plans is the difference between high definition television and black and white.”

      Intelligent Sample


      The Intelligent Advantage.... you multiple perspective views and construction detail (delivered in PDF format).This will allow you and your builder to have complete understanding of the designer’s intent, verify constructability, preview and alter material finish selections used in the modeling process, and so much more.

      • VIEW 3-D Models from multiple vantage points.
      • ASSURANCE that the design through and through is of the highest standard.
      • ABILITY to review constructability (especially important complex roof designs and wall geometries).
      • Obtain ACCURATE material take-off reports.
      • Quickly EXPLORE design modifications, putting custom design with reach of consumer once limited to typical stock house plans.
      • We model each architect or designers FINISHING TOUCHES - an expression of their unique style.

      Building Information Modeling (BIM) used to model your house as it will be constructed, from the concrete footings to the shingle roof cap. Every element of the design is modeled in three dimensions, not drafted with lines or drafting symbols.

      What you get...

      • (2) Exterior Perspective Views (You select siding & roofing materials/colors, window grid style, trim color)
      • Interior Perspective view (You select casing, baseboard, crown molding styles)
      • (2) Intelligent 3-D sections with full construction notation (Additional views upon request)
      • Enhanced Framing Plans (See sample pdf)
      • Complete material schedules & takeoffs
      • (1) 3-D Intelligent Structural View (Additional views upon request)

      How to order...

      ...when ordering house plans, simply select the plan package you would like, then select the “Intelligent House Plan” option on the order form. That’s all you need! You will be sent the complete drawings in a full 3-D version of the design you have selected. That’s when the fun begins!
